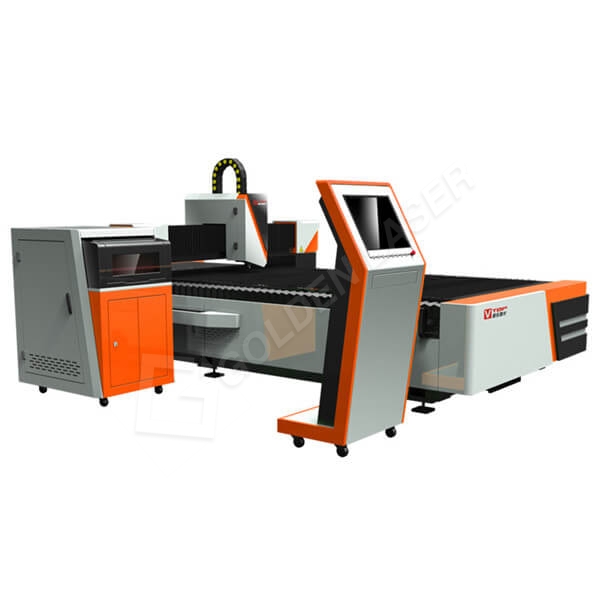

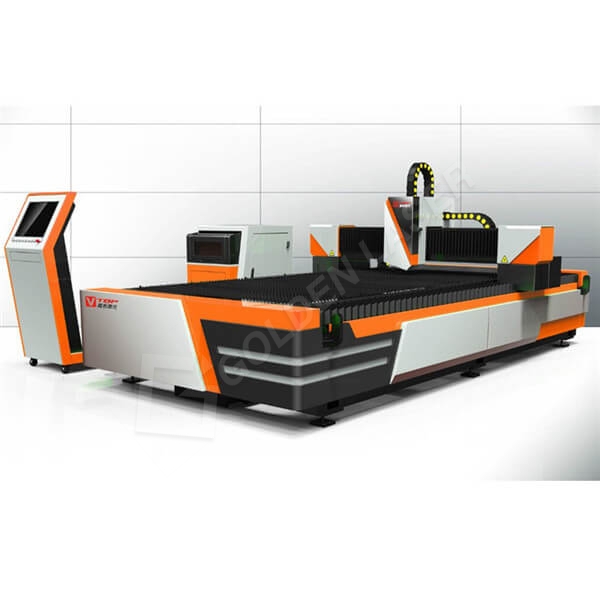

1000W Open Type Fiber Laser Metal Cutting Machine

  • 1000W Open Type Fiber Laser Metal Cutting Machine
  • 1000W Open Type Fiber Laser Metal Cutting Machine
  • 1000W Open Type Fiber Laser Metal Cutting Machine

Golden Laser flated fiber laser cutting machine GF-1530, is the enter type of fiber laser cutting machine, with the cutting area 1500mm*3000mm, open design easy to loading and metal materials on each side.

………………………………………………………………………………………………………………………………………………………………………..

Model number: GF-1530 (GF-1540 / GF-1560 for option)

Laser source: IPG / nLIGHT fiber laser generator

Laser power: 1000w (700w-3000w optional)

CNC controller: Cypcut laser controller

Laser head: Raytools laser cutting head

Cutting area: 1.5m X 3m (1.5m X 4.0m, 1.5m X 6.0m optional)

Max cutting thickness: 12mm carbon steel, 5mm stainless steel, 4mm aluminum, 3mm galvanized steel, 4mm brass, 3mm copper.

  • Model number : GF-1530 (GF-1540 / GF-1560 for option)

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

X
  • Previous:
  • Next:

    • 1000w Open Type Fiber Laser Metal Cutting Machine GF-1530

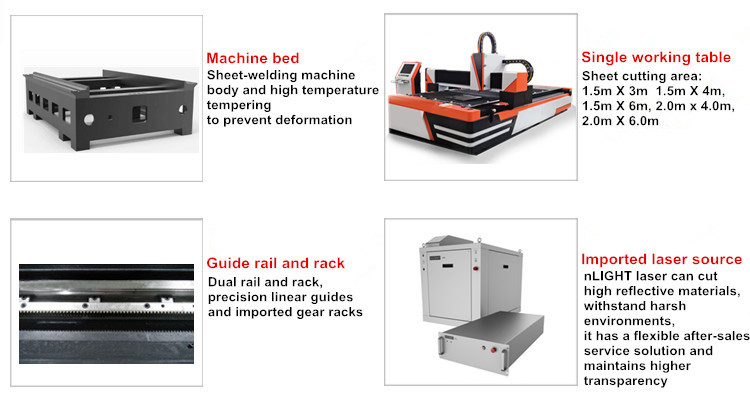

    Machine Features

    Golden Laser Open design provides easy loading and unloading metal materials.

    Single working table saves space

    Four Drawer style tray makes easy collecting and cleaning for the scraps and small parts

    Double driving structure Gantry , high damping bed, good rigidity, ensure laser cutting in good speed and high acceleration

    The world’s famous fiber laser source like IPG, nLIGHT and famous electronic components to ensure fiber laser cutting machine superior stability

    fiber laser sheet cutting

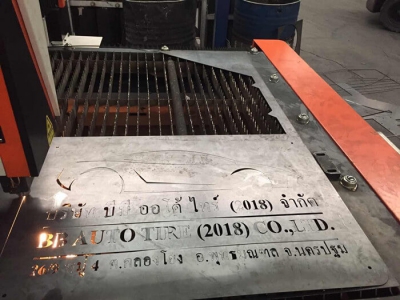

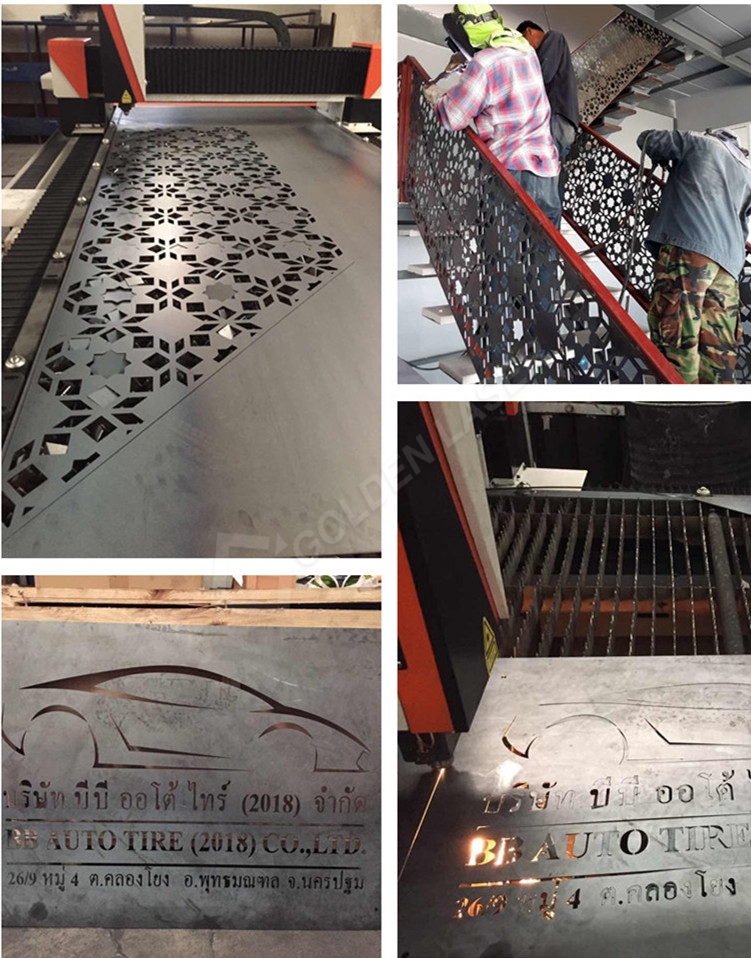

    Fiber Laser Cutting Machine For Metal Craft in advertisement industry

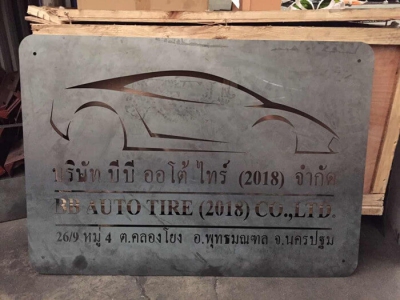

    advertised metal cutting
    steel-laser-cutter(1)

    Fiber Laser Cutting Machine GF-1530 In Russia Customer Site

    metal laser cutter price
    5mm stainless steel laser cutting
    6mm carbon steel laser cutter
    fiber laser sheet cutter

    GF-1530 Flated Fiber Laser Cutter In Portugal Customer Site

    1000W Fiber Laser Cutting machine's cutting Capacity (Metal Cutting Thickness)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    12mm

    10mm

    Stainless steel

    5mm

    4mm

    Aluminum

    4mm

    3mm

    Brass

    4mm

    3mm

    Copper

    3mm

    2mm

    Galvanized steel

    3mm

    2mm

    1000W Laser cutting Speed chart

    Materials

    Thickness

    (mm)

    The Maximum Cutting Speed

    (mm/s)

    Gas

    Mild steel

    1

    210

    O2

    2

    110

    3

    60

    4

    40

    5

    30

    6

    25

    8

    17

    10

    14

    12

    13

    Stainless steel

    1

    300

    AIR

    2

    95

    3

    36

    4

    18

    5

    10

    AL

    1

    240

    AIR

    2

    65

    3

    13

    4

    8

    Watch The Video - 1000W fiber laser cutting machine GF-1530 in Russia

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Industry

    Laser cutting machine began to be widely used in the engineering machinery industry 10 years ago. It is mainly used for the cutting and cutting of concrete, cranes, road machines, loaders, port machinery, excavators, fire-fighting machines, and environmental sanitation machinery.

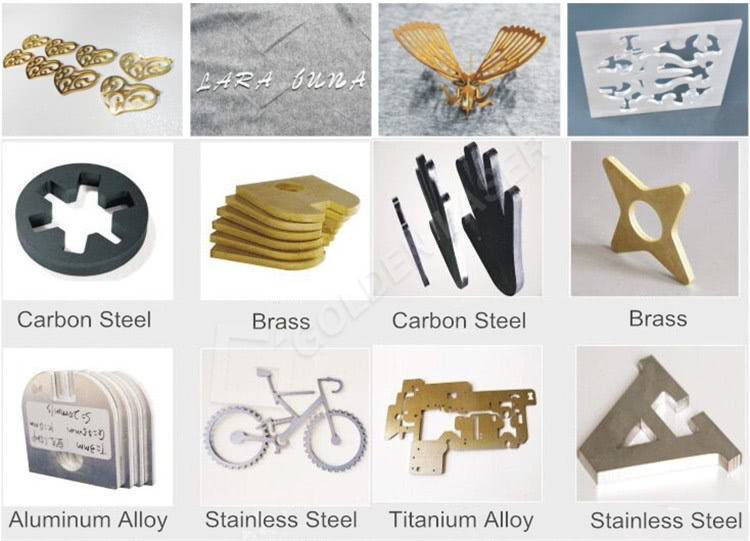

    Applicable Materials

    Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate etc.

    Laser Cutting Machine For Metal Door Flower Cutting

    fiber cutting machine

    fiber laser cutting aluminium



    Machine Technical Parameters

    OPEN TYPE FIBER LASER CUTTING MACHINE Technical Parameters
    Equipment model GF1530 GF1540 GF1560 GF2040 GF2060 Remarks
    Processing format 1.5mX3m 1.5mX4m 1.5mX6m 2.0mX4.0m 2.5mX6m
    X Y axis maximum moving speed 100m/min 100m/min 100m/min 100m/min 100m/min
    X Y axis maximum acceleration 1.2G 1.2G 1.2G 1.2G 1.2G
    positioning accuracy ±0.05mm/m ±0.05mm/m ±0.05mm/m ±0.05mm/m ±0.05mm/m
    Repeatability ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
    X-axis travel 1550mm 1550mm 1550mm 2050mm 2050mm
    Y-axis travel 3050mm 4050mm 6050mm 4050mm 6050mm
    Z-axis travel 200mm 200mm 200mm 200mm 200mm
    Oil circuit lubrication √ √ √ √ √
    Dust extraction fan √ √ √ √ √
    Smoke purification treatment system           Optional
    Cutting software CYPCUT CYPCUT CYPCUT CYPCUT CYPCUT
    Laser power 1000w (700w-3000w optional)
    		 1000w (700w-3000w optional) 1000w (700w-3000w optional) 1000w (700w-3000w optional) 1000w (700w-3000w optional) Optional
    Laser brand nLIGHT/IPG/Raycus nLIGHT/IPG/Raycus nLIGHT/IPG/Raycus nLIGHT/IPG/Raycus nLIGHT/IPG/Raycus Optional
    Cutting head Manual focus /Auto focus Manual focus /Auto focus Manual focus /Auto focus Manual focus /Auto focus Manual focus /Auto focus Optional
    cooling method Water cooling Water cooling Water cooling Water cooling Water cooling
    Workbench maximum load bearing 580kg 700kg 1300kg 1100kg 1600kg
    Machine weight 5T 6.5T 8T 7T 8.5T
    Machine size 4.6m*3.1m*1.9m 5.6m*3.1m*1.9m 7.6m*3.1m*1.9m 5.6m*3.6m*1.9m 7.6m*3.6m*1.9m
    Machine power 4.8KW 4.8KW 6.6KW 6.6KW 6.6KW Does not include laser, chiller power
    Power supply requirements AC380V 50/60Hz AC380V 50/60Hz AC380V 50/60Hz AC380V 50/60Hz AC380V 50/60Hz



    Main Parts

    Article Name Brand
    Fiber laser source IPG (America)
    CNC controller & Software CYPCUT LASER CUTTING CONTROL SYSTEM BMC1604 (China)
    Servo motor and driver YASKAWA (Japan)
    Gear rack ATLANTA (Germany)
    Liner guide REXROTH (Germany)
    Laser head RAYTOOLS (Switzerland)
    Gas proportional valve SMC (Japan)
    Reduction gear box APEX (Taiwan)
    Chiller TONG FEI (China)
