Exchange table Fiber Laser Cutting Machine Parameters |
|
| Laser power | 1500W to 12000W |
| Laser source | IPG / Raycus / Max fiber laser generator |
| Laser generator working mode | Continuous/Modulation |
| Beam mode | Multimode |
| Processing surface (L × W) | 1.5m X 3m (Exchange Table) |
| X axle stroke | 3050mm |
| Y axle stroke | 1520mm |
| Z axle stroke | 200mm |
| CNC system | FSCUT controller |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total Power consumption | Depend on the laser source |
| Position accuracy (X, Y and Z axle) | ±0.05mm |
| Repeat position accuracy (X, Y and Z axle) | ±0.03mm |
| Maximum position speed of X and Y axle | 160m/min |
| Max load of working table | 500kg – 1400kg |
| Auxiliary gas system | Dual-pressure gas route of 3 kinds of gas sources |
| Format supported | AI, BMP, PLT, DXF, DST, etc. |
/

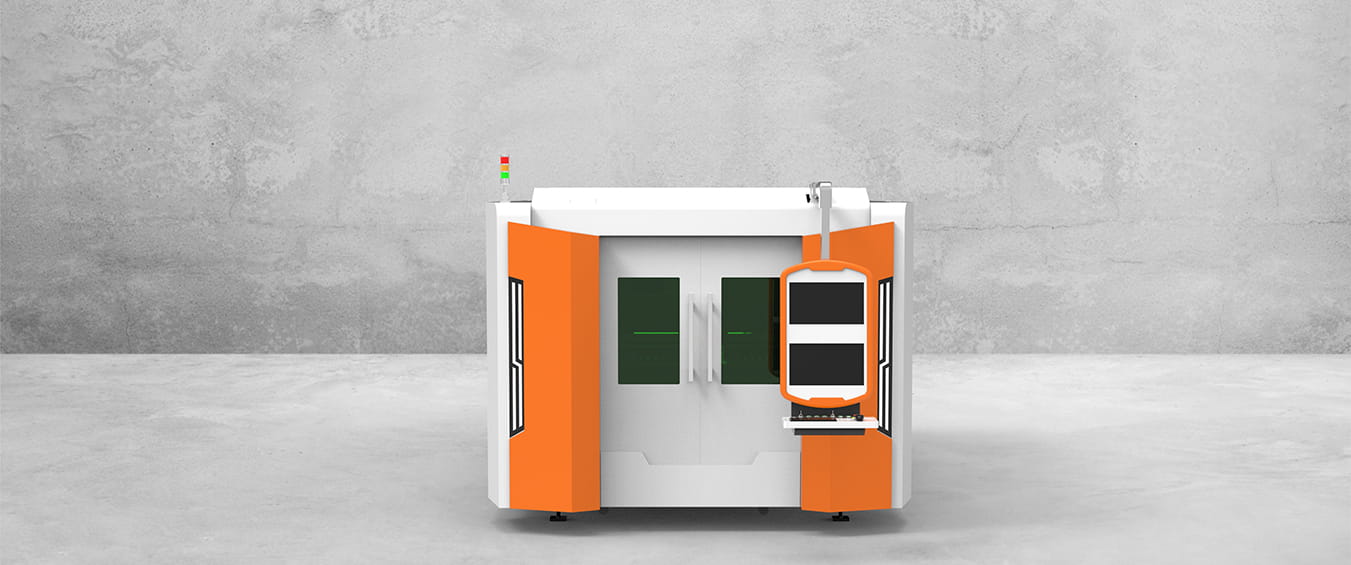

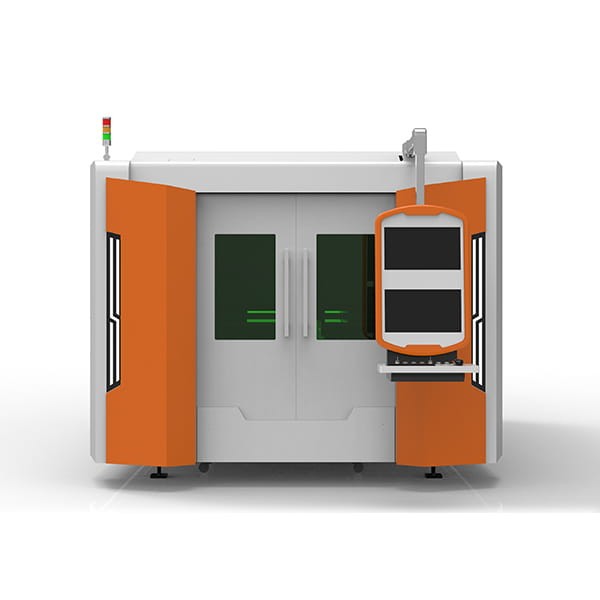

Clasic Fiber Laser Cutting Machine
Exchange Table For Sheet Metal Cutting

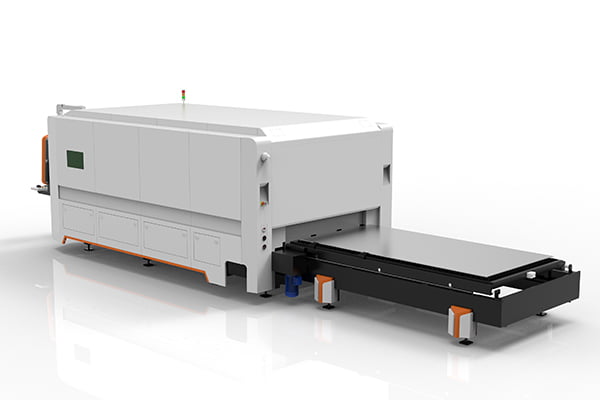

Deepened Sealed Partition Design
The fully enclosed workbench back panel is equipped with an automatic switch partition, which automatically opens during the workbench exchange process and automatically closes after the exchange is completed, effectively avoiding the overflow of metal smoke and dust during metal cutting, truly achieving safety protection without gaps.

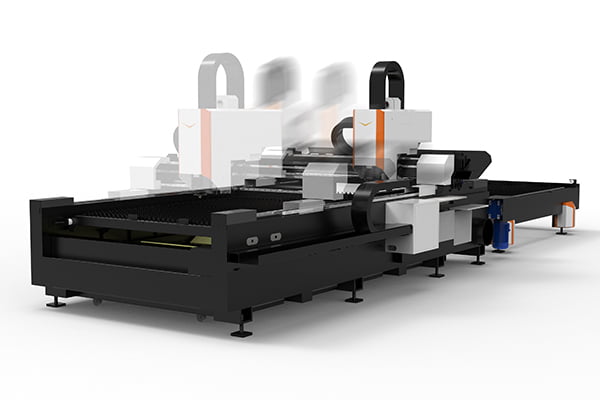

High Dynamic Performance
The X3plus is equipped with a maximum acceleration of 2.0G and a maximum air movement speed of 160m/min, achieving the ultimate dynamic performance.
Whether it is thin or thick plates, its processing efficiency has doubled, greatly expanding the scope of application and ensuring an efficient processing experience

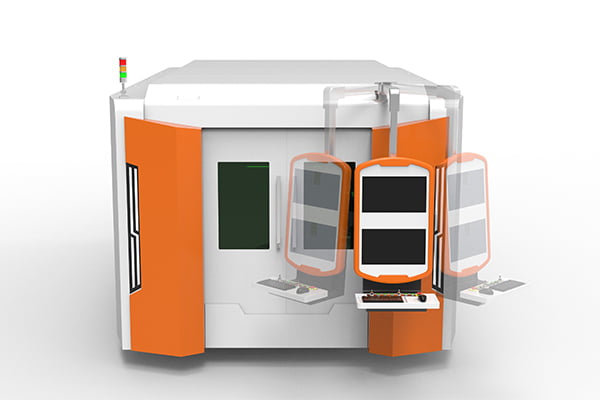

Flexible Operating Table Design
The rotating operating table supports 270-degree free rotation in all directions, providing operators with unprecedented flexible viewing angles. It makes it easier to switch between equipment debugging and cutting observation angles, ensuring that the debugging of metal cutting processes is more intuitive and efficient

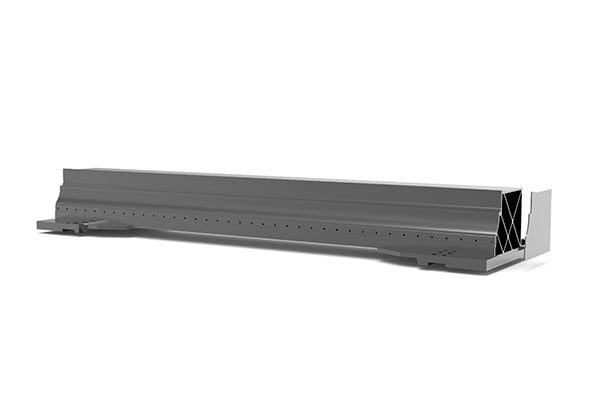

New Generation Aluminum Beam
Lightweight Design Enhances Performance
Wear-Resistant and Corrosion-Resistant
High Rigidity and Stability

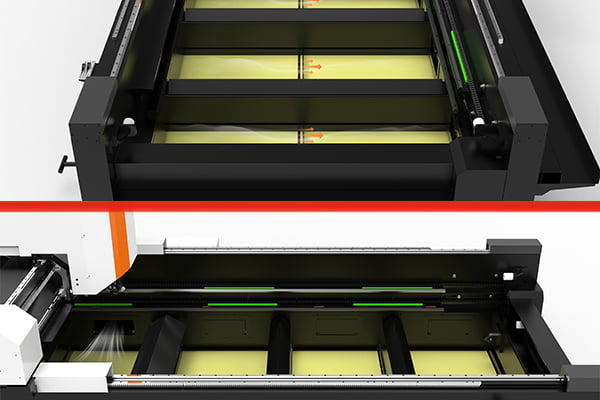

Best Dust Remove Solution
Combination of blowing and exhaust in different areas for more effective dust removal
The bottom of the machine tool blows dust on one side to the opposite side, forming a directional air pressure airflow, which disperses the dust and smoke during the laser cutting process to the dust extraction window on the opposite side. The dust extraction side is designed to be dynamically linked to the position of the laser cutting head. That is, the dust extraction window of the area cut by the laser cutting head is automatically opened, and the rest are closed, which is linked to the position of the cutting head in real time to achieve the effect of quickly extracting smoke and dust.

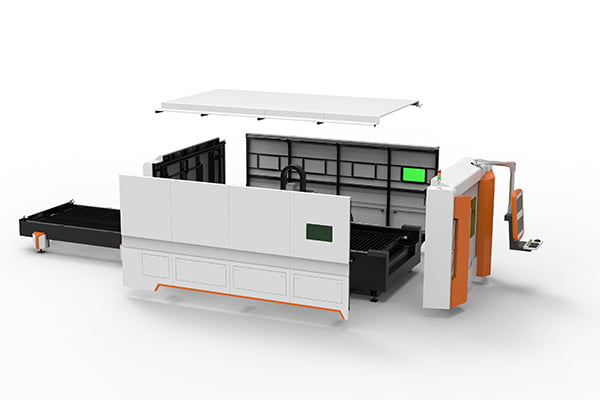

Modular Design Makes Installation Faster
The advanced modular design concept divides the surrounding sheet metal and frame into four independent and complete module units. This design makes the disassembly and assembly process of the equipment extremely simple: you only need to disassemble and pack the module units as a whole to easily complete the disassembly and installation of the equipment. It not only greatly saves the time required for equipment installation, but also makes the future maintenance and migration of the equipment more convenient.

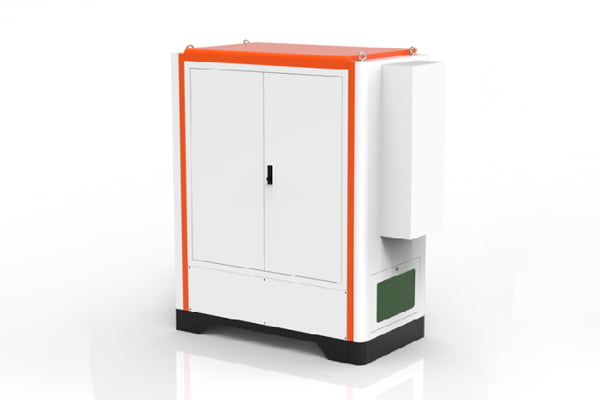

Independent Electric Control Cabinet
Centralized management
All electric control parts are centrally arranged, and the laser (cabinet) storage space is integrated. Functional areas are regionalized, sealed and dustproof, circuit hazards are reduced, and equipment maintenance and repair targets are more centralized, quick and convenient.
Constant temperature protection
Independent electric control cabinets are equipped with dedicated cooling air conditioners to maintain a constant temperature inside the electric control cabinet to ensure stable operation of electrical components. At the same time, under different temperature conditions, temperature condensation is avoided to prevent serious laser failures and establish laser protection functions.

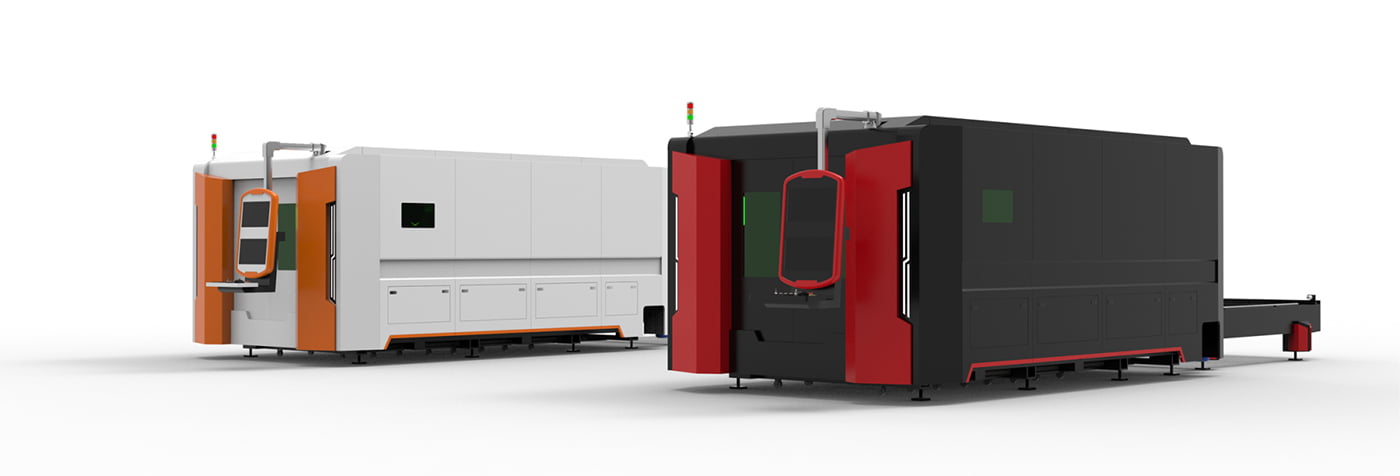

Various Appearance For Choice
Orange White
Continuing the main color scheme of the family products, it presents fresh, bright and energetic characteristics
Red and black
The red and black color scheme usually presents a strong and unique visual impact in appearance.
Fiber Laser Cutting Machine Video
Material & Industry Application
Laser Cutting Metal Applicable Industry
Welding in Sheet metalworking, hardware, kitchenware, electronic, automotive parts, glass, advertising, craft, lighting, decoration, etc.
Laser Cutting Metal Applicable Material
Metal Welding Specially for carbon steel, stainless steel, alloy, aluminum, galvanized steel, titanium, brass, copper and other metal sheets.
Machine Technical Parameters
