1500w 2500w Full Closed Pallet Table CNC Fiber Laser Metal Sheet Cutting Machine

  • 1500w 2500w Full Closed Pallet Table CNC Fiber Laser Metal Sheet Cutting Machine

Fiber laser cutting machine with change table. Enclosure design. IPG / nLIGHT 1500W 2500W fiber laser generator. Cut max 10mm stainless steel, 20mm mild steel. Adopting double gear rack closed-loop system and beckhoff Controller, enable high processing accuracy and high working efficiency during high speed cutting.

Laser source: IPG / nLight fiber laser generator

Laser power: 1500w 2500w (1000w,1200w,2000w,3000w optional)

Laser head: Raytools or Precitec

Cnc controller: Cypcut or Beckhoff controller

Cutting area: 1.5m X 3m, 1.5m X 4m, 1.5m X 6m, 2.0m X 4.0m, 2.0m X 6m.

  • Model number : GF-1530JH (GF-1540JH / GF-1560JH / GF-2040JH / GF-2060JH optional)

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

X
  • Previous:
  • Next:

    • 1500w 2500w Full Closed Pallet Table CNC Fiber Laser Metal Sheet Cutting Machine GF-1530JH

    laser cutting machine gf-1530jh

    Fiber laser cutting Machine Features

    BECKHOFF CNC control system



    1. In combination with the Motion Control solutions offered by the TwinCAT automation software, Beckhoff Drive Technology represents an advanced and complete drive system.



    2. PC-based control technology from Beckhoff is ideally suited for single and multiple axis positioning tasks with highly dynamic requirements.



    3. High-precision photoelectric sensors and mechanical travel switches are installed on all the moving parts of the machine, which can capture every movement moment, and control machine act instantly.



    4. System signal transmission without interference, make sure the machine running with high dynamic, energy efficient and low cost.

    Safety and No Pollution



    Full protective enclosure provides safety protection from unseen laser radiation and mechanical movement.

    Pallet working table saves feeding time



    1. Drawer style tray makes easy collecting and cleaning for the scraps and small parts, Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration.



    2. The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly.

    Automatic shuttle table



    1. Integarted shutttle tables maximize the productivity and minimize the material handing times.The shuttle table changing system allows covenient loading of new sheets after unloading.



    2. The shuttle tables is fully electric and maintenance free , The table changes take place fast, smooth and energy-efficient.

    1500w Fiber Laser Sheet Cutting Machine (metal cutting thickness ability)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    14mm

    12mm

    Stainless steel

    6mm

    5mm

    Aluminum

    5mm

    4mm

    Brass

    5mm

    4mm

    Copper

    4mm

    3mm

    Galvanized steel

    5mm

    4mm

    2500w Fiber Laser Sheet Cutting Machine (metal cutting thickness ability)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    20mm

    18mm

    Stainless steel

    10mm

    8mm

    Aluminum

    8mm

    6mm

    Brass

    8mm

    6mm

    Copper

    6mm

    4mm

    Galvanized steel

    6mm

    5mm

    Fiber Laser Cutting Metal Sheet Samples Demonstration

    fiber-laser-cutting-machine4 laser-sheet-cutting-machine-price2 metal-sheet-laser-cutting3



    Customer Site - 2500w Fiber Laser Sheet Cutting Machine GF-1530JH In The United Kingdom

    Watch The Video - 2500w Fiber Laser Sheet Cutting Machine GF-1530JH

  • Previous:
  • Next:

    • Material & Industry Application

    Fiber Laser Cutting Machine Applicable Materials

    Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, etc



    Fiber Laser Cutting Machine Applicable Industries

    Machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields



    Fiber Laser Cutting Metal Sheets

    fiber laser cutting samples





    Machine Technical Parameters

    Full Closed Fiber Laser Cutting Machine with Pallet Changer GF-1530JH
    Laser power 1500w 2500w (1000w,1200w,2000w,3000w optional)
    Laser source nLIGHT / IPG fiber laser generator
    Laser generator working mode Continuous/Modulation
    Beam mode Multimode
    Processing surface (L × W) 3000mm x 1500mm
    X axle stroke 3050mm
    Y axle stroke 1550mm
    Z axle stroke 100mm/120mm
    CNC system Beckhoff controller
    Power supply AC380V±5% 50/60Hz (3 phase)
    Total Power consumption 16KW
    Position accuracy (X, Y and Z axle) ±0.03mm
    Repeat position accuracy (X, Y and Z axle) ±0.02mm
    Maximum position speed of X and Y axle 120m/min
    Max load of working table 900kg
    Auxiliary gas system Dual-pressure gas route of 3 kinds of gas sources
    Format supported AI, BMP, PLT, DXF, DST, etc.
    Floor space 9m x 4m
    Weight 14T

    Related products

    • Full Enclosure Shuttle Table Fiber Laser Sheet and Tube Cutting Machine GF-1530JH

      GF-1530JHT

      Full Enclosure Shuttle Table Fiber Laser Sheet and Tube Cutting Machine GF-1530JH
    • CNC Fiber Laser Tube Cutting Machine

      CNC Fiber Laser Tube Cutting Machine

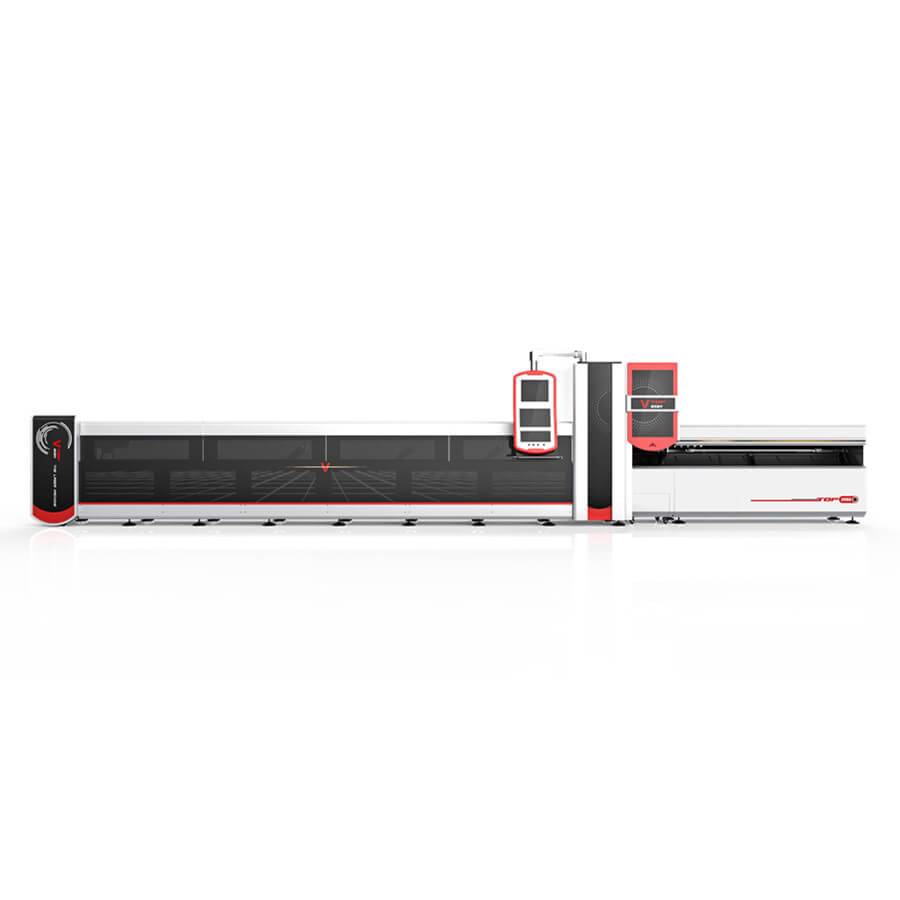

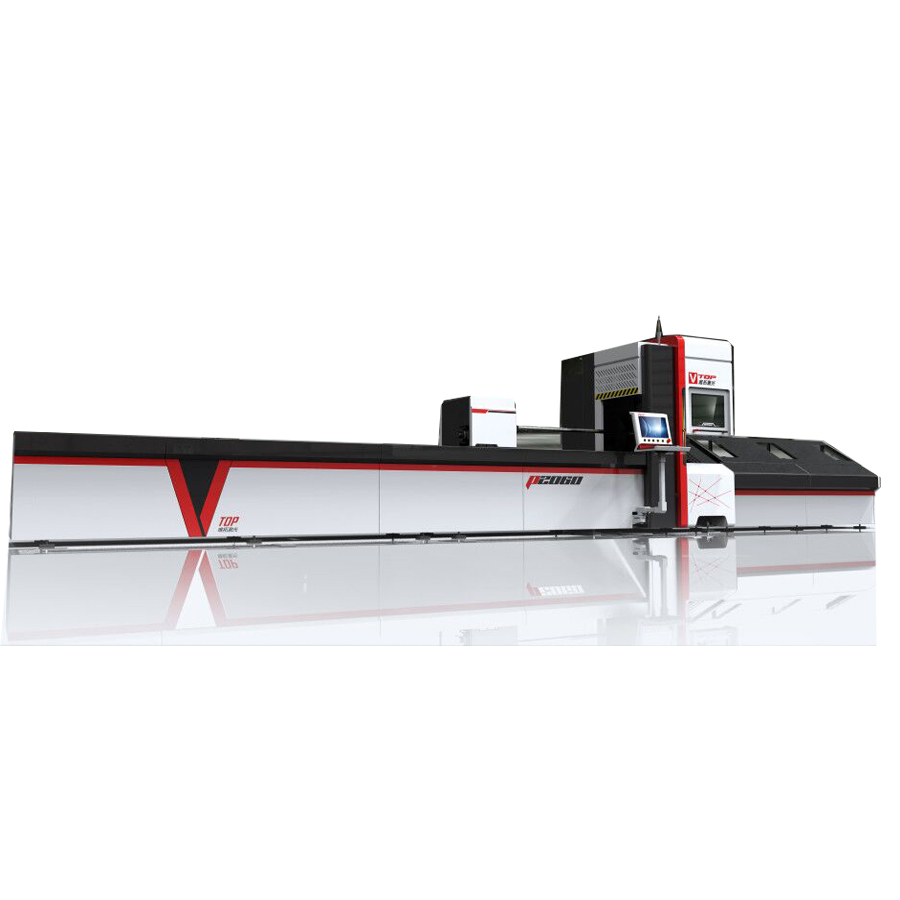

    • 1000w 1500w Semi Automatic Stainless Steel Tube Pipe Fiber Laser Cutting Machine
