High-end Intelligent CNC Laser Tube Cutting Machine

  • High-end Intelligent CNC Laser Tube Cutting Machine

Large High-end intelligent CNC  laser pipe cutting machine, especially for large size metal tube and pipe cutting. With Automatic bundle loading system for large heavy pipe automatic continous production.

Fiber laser cutting machine HS code: 84561100

  • Model number : i35A (P3580A)
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

X
  • Previous:
  • Next:

    • Large size CNC  laser pipe cutting machine

    Especially for large diameter metal tubes and heavy pipe cutting...  The tube outer diameter can be 20-300mm, suit for various shape tube and pipe CNC laser cut. pipe length reaches to 8 meters. With an 8-meter Automatic bundle loading system for continuous batch production.

    Main Chuck of P2060A

    300mm OD Tube Main Chuck...



    New Generation Casting Main Chuck



    Casting Frame for embedded installation. more high accuracy and long using life.



    The main chuck innovatively uses a casting frame for embedded installation, which is integrated with the main body of the machine tool, and the ultra-high-speed cutting is as stable. There is no need to adjust the jaw position for full-stroke clamping.

    .

    Servo Controller Strong Pipe Supporter...

    Variable diameter wheel suit for large size and heavy tube,

    Both the loading end and the unloading end are equipped with a servo control variable diameter wheel support system, which is more in line with the support requirements of heavy pipes in terms of pipe load-bearing. At the same time, when the type of processing pipe is switched, the adjusting wheel support is adjusted through The cutting system can quickly complete the input of pipe diameter data, abandoning the manual adjustment method, and the operation is simpler and safer. The resin wheel ensures the strong power to hold the large and heavy pipe during laser cutting, Will not be thrown out during high-speed rotation due to gravity...

    Servo variable wheels supporter P3080A
    end chuck to hold the tube for laser cutting

    Large Power Tube Tail Chuck...



    Adjust power to capture large and heavy tube,

    End chuck also uses pneumatic chuck valid for tube diameter from 20-300mm. Special mold support special shape pipe, like L tubes, I beam, Channel steel...

    Germany PA CNC controller with Spain Lanteck CAM software ...

    Including the design and nesting of the tube, will finish more than 90% working before laser-cut,

    Various shape metal tubes can be cut like a triangle, oval, waist tube, and other open shaped tube & pipe, I beam, Channel beam process, pls contact with our sales...

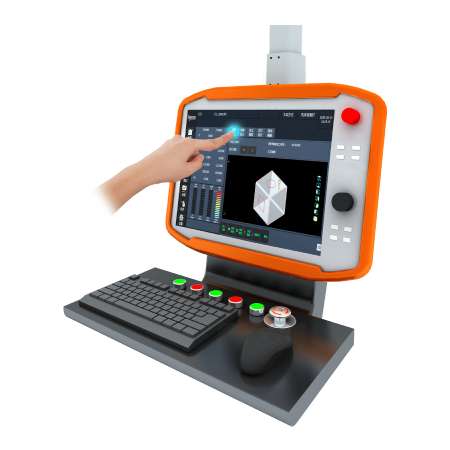

    PA CNC controller new
    touch screen

    New architecture PA touch screen bus cutting system...

    The cutting system uses a brand-new UI interface.

    After the system is upgraded, it includes 7 modules: planning, production, process, debugging, maintenance, diagnosis, and setting.

    The entire system is more intelligent and digital and can be seamlessly connected with the EMS intelligent cloud data management system of the intelligent manufacturing factory...

    Automatic Collecting Device...

    Floating support receives the pipes into the basket

    Servo motor control the floating supporter, it can adjust the support point according to the pipe diameter quickly. ensures the concentricity, reduces pipe swinging during the laser cutting...

    P2060B Tailer Support
    Golden Laser Auto-tube-loading-system2-1200x675(1)

    8-meter tube automatic bundle loader...

    Suit for various diameter pipe automatic loading, Max loading Weight 2.5t,

    Especially design ensure to loading by a 40GP, Metal chain loading with pipe length measure function ensure to feeding the right size pipe to tube fiber laser cutting machine before cutting, save your tubes....

    Samples Show - High-end intelligent CNC laser pipe cutting machine for different shape tube

    More Pipe Laser Cut Samples

    200mm Channel Beam Laser Cut

    chanel pipe laser cut off

    6mm Stainless Steel Pipe Laser Cut

    6MM SS. 150mm diameter tube cut

    Thick Carbon Steel Tube Laser Cut

    CS thick pipe cut

    P3080A 4KW Fiber Laser Cutting Tube Video

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Materials

    Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, alloy steel and so on.



    Applicable Types of Tubes

    Large diameter Round tube, Squre tube, Rectangle tube, I beam, Channel beam, Angle iron and so on



    Application Industry

    Mainly used in tubes processing industry etc, building structure, bridge  fitness equipment, office furniture, shelves, steel structure, medical industry, rail rack and other industries tube and shaped pipe and other profile processing.



    applicable-types-of-laser-cutting-tube

    Machine Technical Parameters

    High-end intelligent CNC  laser pipe cutting machine P Series Tube Laser Cutter Technical Parameters

    Model number i35A (P3580A)
    Laser power 1000w, 1500w, 2000w, 3000w， 4000w
    Laser source IPG / nLight fiber laser resonator
    Tube length 8000mm
    Tube diameter 20mm-300mm
    Tube type Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);
    Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
    Repeat position accuracy ± 0.03mm
    Position accuracy ± 0.05mm
    Position speed Max 90m/min
    Chuck rotate speed Max 120r/min
    Acceleration 1.2g
    Graphic format Solidworks, Pro/e, UG, IGS
    Bundle size 800mm*800mm*6000mm
    Bundle weight Max 2500kg
