2000W Fiber Laser Cutting Machine for Metal Pipe and Tube

  • 2000W Fiber Laser Cutting Machine for Metal Pipe and Tube
  • 2000W Fiber Laser Cutting Machine for Metal Pipe and Tube
  • 2000W Fiber Laser Cutting Machine for Metal Pipe and Tube
  • 2000W Fiber Laser Cutting Machine for Metal Pipe and Tube
  • 2000W Fiber Laser Cutting Machine for Metal Pipe and Tube

Metal pipe and tube laser cutting machine with 2000w fiber laser source.

Cutting pipe & tube of round, square, rectangular, oval, waist round metal, etc.

Standard Φ=20mm~200mm, L=6m.

Pipes length longer than 6m and diameter more than 200mm, machine can be customized.

………………………………………………………………………………………………….

Model number: P2060 / P2070 / P3080

Laser source: IPG / nLIGHT / Raycus laser generator

Laser power: 2000w

Pipe length: 6m

Pipe diameter: 20mm-200mm / 20mm-300mm

Cnc controller: Germany PA

Nesting software: Spain Lantek

Applicable materials : Metal pipes

Max cutting thicknees: 16mm carbon steel, 8mm stainless steel, 6mm aluminum,6mm brass, 4mm copper, 6mm galvanized steel etc.

Applicable tube types : Round tube, square tube, rectangular tube, oval tube, D-shaped steel etc.

Applicable Industry: sports equipment, display shelf, fitness equipment, playground Equipment, tubes processing industry etc.

  • Model number : P3080

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

X
  • Previous:
  • Next:

    • 2000W Fiber Laser Cutting Machine for Metal Pipe and Tube P2060

    Golden Laser P series fiber laser tube cutting machine P2060 with the fiber laser generator 2000w can cut the round tube, square tube, rectangle tube, waist round tube, oval tube and other irregulared tubes etc. Tube standard processing diameter 20mm-200mm, tube length 6m. And the customaztion of the tube laser machines is acceptable according to customers' requirement.

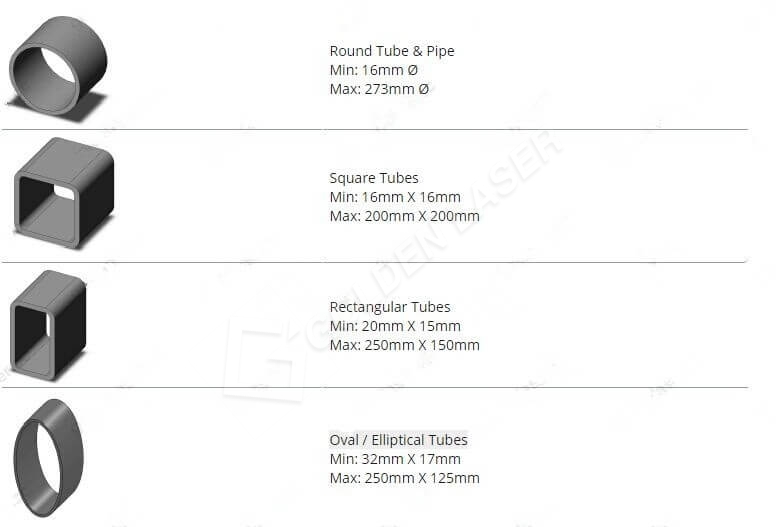

    laser-cutting-tube-type

    2000w Laser Tube Cutting Machine (metal cutting thickness ability)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    16mm

    14mm

    Stainless steel

    8mm

    6mm

    Aluminum

    6mm

    5mm

    Brass

    6mm

    5mm

    Copper

    4mm

    3mm

    Galvanized steel

    6mm

    5mm

    Fiber Laser Cutting Pipes Samples Show

    metal chair cutting
    tube laser cutter in Russia

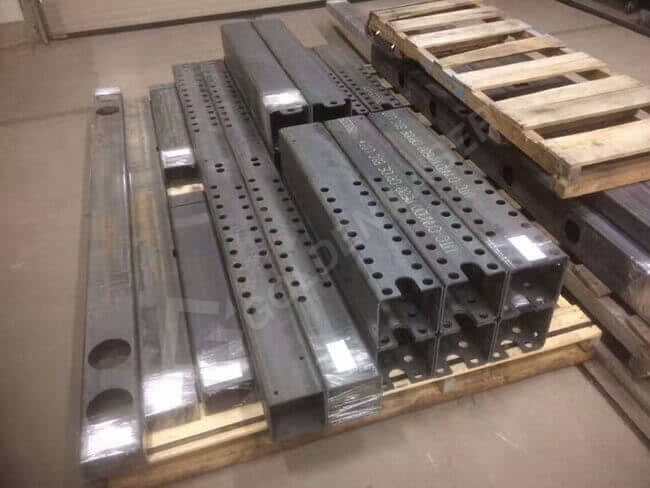

    square tube laser cutter
    tube laser cutter

    2000w Fiber Laser Cutting Speed Chart

    Thickness

    Carbon Steel

    Stainless Steel

    Aluminum


    O2

    Air

    Air

    1.0mm

    450mm/s

    400-450mm/s

    300mm/s

    2.0mm

    120mm/s

    200-220mm/s

    130-150mm/s

    3.0mm

    80mm/s

    100-110mm/s

    90mm/s

    4.5mm

    40-60mm/s



    5mm



    30-35mm/s



    6.0mm

    35-38mm/s

    14-20mm/s



    8.0mm

    25-30mm/s

    8-10mm/s



    12mm

    15mm/s



    14mm

    10-12mm/s



    16mm

    8-10mm/s

    Laser Tube Cutting Machine Features

    metal tube laser cutting machine price

    Advanced chuck system: the chuck self-adjusting center automatically adjusts the clamping force according to the profile specifications, thus it can ensure the thin tube clamps without damaged.

    Corner rapid cutting system: the tubes corners cutting respond speed is very quick and greatly improve cutting efficiency.

    Efficient cutting system: After tube laser cutting, the workpiece can be automatically fed to the feeding area.

    Professional pipe laser cutting control system Germany PA and nesting software Spain Lantek.

    Automatic collecting device: The floating support device collects the finished pipes automatically; The floating support is controlled by the servo motor and it can adjust the support point according to the pipe diameter quickly; The floating panel support will hold the large diameter pipe tightly.

    laser-cutting-machine-for-metal-tubes

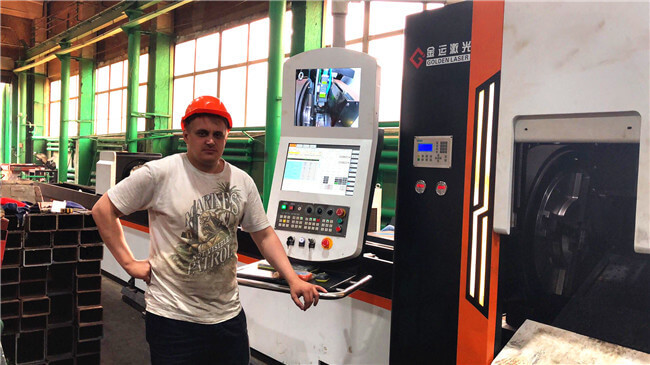

    Customer Site - 2000w Laser Tube Cutter P3080 In Russia

    tube laser cutting 01
    tube laser cutting 02
    tube laser cutting 03
    tube laser cutting 04
    tube laser cutting 05
    tube laser cutting 06

    Watch The Video - 2000w Fiber Laser Tube Cutting Machine P3080

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Materials

    Stainless steel, carbon steel, aluminum, brass, copper, alloy steel and galvanized steel etc.

    Applicable Industry

    Metal furniture, medical device, fitness equipment, sports equipment, oil exploration, display shelf, agriculture machinery, bridge supporting, steel rail rack, steel structure,fire control and pipe processing etc.

    Applicable Types Of Tubes

    Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard); Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)

    Fiber Laser Pipe Cutting Machine For Metal Tube

    steel tube laser cutting machine price





    Machine Technical Parameters

    Model number P2060 / P3080
    Tube length 6000mm, 8000mm
    Tube diameter 20mm-200mm, 20mm-300mm
    Laser source imported fiber laser resonator IPG / N-Light
    Laser resonator Nlight, IPG or Raycus
    Servo Motor 4 servo motors for all axial movement
    Laser source power 2000w (1000w 1500w 2500w 3000w optional)
    Position accuracy ±0.03mm
    Repeat position accuracy ±0.01mm
    Rotating speed 120r/min
    Acceleration 1.2G
    Cutting speed depend on material, laser source power
    Electric power supply AC380V 50/60Hz
