1500w Medium Format Fiber Laser Sheet Cutting Machine

The models GF-1616 / GF-1313 machine with the cutting area 1.6m * 1.6m and 1.3m * 1.3m ; Automated loading / Unloading working table,and equipped with 1500w ( 700w,1000w, 1200w,2000w, 2500w optional ) fiber laser generator,which can cut 14mm mild steel, 6mm stainless steel, 5mm aluminum, 5mm brass, 4mm copper, 5mm galvanized steel.

……………………………………………………………………………………………………………………………………………………………………………………..

  • Model number: GF-1616 / GF-1313
  • Laser power: 1500w ( 700w,1000w, 1200w,2000w, 2500w optional )
  • Laser source: IPG / nLight fiber laser generator
  • Cnc controller: Cypcut controller
  • Laser head: Raytools laser cutting head
  • Cutting area: 1600mm X 1600mm / 1300mm X 1300mm
  • Max metal cutting thickness: 14mm mild steel, 6mm stainless steel, 5mm aluminum, 5mm brass, 4mm copper, 5mm galvanized steel.
  • Model number : GF-1616 / GF-1313

Medium Format Laser Sheet Cutting Machine GF-1616 / GF-1313

1500w Fiber Laser Cutting Machine (Metal cutting thickness ability)

Material

Cutting Limit

Clean Cut

Carbon steel

14mm

12mm

Stainless steel

6mm

5mm

Aluminum

5mm

4mm

Brass

5mm

4mm

Copper

4mm

3mm

Galvanized steel

5mm

4mm

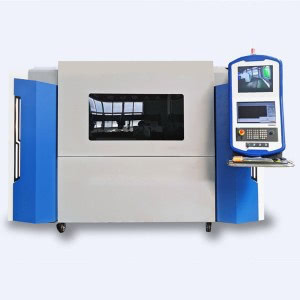

GF-1616 fiber laser sheet cutter

The models GF-1616 / GF-1313 machine with the cutting area 1.6m * 1.6m and 1.3m * 1.3m ; Automated loading / Unloading working table,and equipped with 1500w ( 700w,1000w, 1200w,2000w, 2500w optional ) fiber laser generator,which can cut 14mm mild steel, 6mm stainless steel, 5mm aluminum, 5mm brass, 4mm copper, 5mm galvanized steel.

Machine Details

laser cutting machine price

In order to ensure operation more smart and safe ,We installed laser generator into bottom of Machine.

metal laser cutter

A anti-dust chest & Combined Electronic;

 Parts into machine top side.

fiber laser cutting

Adopted more stable climbing- mode to change working table mutually /automated(Detailed pls see Vedio )

laser sheet cutting machine price

Through square pipe to connect with Water chiller and Dust filter,which install a separately room clost to machine.

1616 fiber laser sheet cutter

Operation Easy, manual push-pull type for easy collecting.

GF-1616 Machine Demo Video


  • Previous:
  • Next:

  • Material & Industry Application


    Applicable Materials

    The machine is used to cut various sheet metal, mainly for stainless steel, carbon steel, manganese steel, copper, aluminum, galvanized sheet, all kinds of alloy plates, rare metals and other materials.

    Applicable Industry

    Sheet metal, jewelry, glasses, machinery and equipment, lighting, kitchen ware, mobile, digital products, electronic components, watches and clocks, computer components, instrumentation, precision instruments, metal molds, car parts, craft gifts and other industries .

    GF-1616 Cutting Samples Demonstration

    fiber laser sheet cutting machine



    Machine Technical Parameters


                                                     Machine Main Technical Parameters
    Model number GF-1616 / GF-1313
    Laser resonator 1500w ( 700w,1000w, 1200w,2000w, 2500w optional ) laser generator
    Cutting area 1600mm X 1600mm / 1300mm X 1300mm
    Cutting head Raytools auto-focus (Swiss)
    Servo motor Yaskawa (Japan)
    Position system Gear rack (Germany Atlanta )    linear(Roxroth)
    Moving system & Nesting software Cypcut control system
    Cooling system Water chiller
    Lubrication system Automatic lubrication system
    Electrical components SMC,Schenider
    Assist Gas Choosing Control 3 types of gases can be used
    Repeat position accuracy ±0.03mm
    Position accuracy ±0.05mm
    Max processing speed 110m/min
    Floor space 2.0m X 3.2m
    Max steel cutting thickness 14mm mild steel, 6mm stainless steel, 5mm aluminum, 5mm brass, 4mm copper, 5mm galvanized steel.
