| Machine Main Technical Parameters | |
| Model number | C15 (GF-1510) |
| Laser resonator | 1000w fiber laser generator (1500w, 2000w, 3000w for option) |
| Cutting area | 1500mm X 1000mm |
| Cutting head | Raytools auto-focus (Swiss) |
| Servo motor | Yaskawa (Japan) |
| Position system | Gear rack (Germany Atlanta ) |
| Moving system & Nesting software | FS8000 Bus Controller from FSCUT Fiber Laser Cutting System |
| Operator | Touch Screen |
| Cooling system | Water chiller |
| Lubrication system | Automatic lubrication system |
| Electrical components | SMC,Schenider |
| Assist Gas Choosing Control | 3 types of gases can be used |
| Repeat position accuracy | ±0.05mm |
| Position accuracy | ±0.03mm |
| Max processing speed | 80m/min |
| Acceleration | 0.8g |
| 1000W Max steel cutting thickness | 12mm carbon steel and 5mm stainless steel |
/
The Design Concept of the laser cutting machine is Intelligent, Ergonomic Design and Easy to Operate on cutting metal sheet
Bus Controller...
FScut 8000 is a high-power dedicated bus system, which is developed based on EtherCAT bus technology,
The bus system responds quickly and the machine runs smoothly.
EtherCAT technology is adopted for great compatibility
Support MES management system access

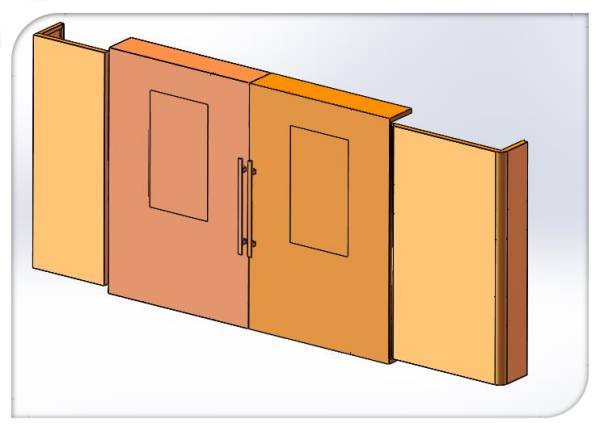

The sliding door ...
Inspired by the sliding plug door above the high-speed rail. Ingenious mechanical structure, effortless sliding door, good sealing

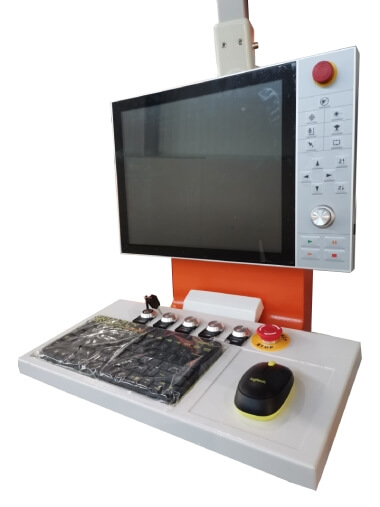

UI Touch Screen...
Touch screan with user interface design, give good using experience
Large touch screan with UI design give excellent using experience to the operator. Visualization operate easy to understanding and avoid misoperation in the tube cutting.
Drawer Design Easy For Metal Loading and Down Loading, Drawer collection box easy to clean the dust ...
Slide rail drawer easy for taking out and pull in. And it also considered the waste parts max. collecting weight above 100kgs.
Advanced Dust Extraction ...
The former post-position smoke channel outlet has large wind resistance, so the dust extraction effect is not good.
Later the somke channel has been changed into left and right symmetrical structure which the dust extraction effect will be more better.
C15 (GF-1510) Precision fiber laser cutting machine Video
Fiber Laser Cutting Samples Show
Material & Industry Application
Applicable Materials
The laser cutting machine is used to cut various sheet metal, mainly for stainless steel, carbon steel, manganese steel, copper, aluminum, galvanized sheet, titanium plates, all kinds of alloy plates, rare metals and other materials.
Applicable Industry
Cut Sheet metal, jewelry, glasses, machinery and equipment, lighting, kitchen ware, mobile, digital products, electronic components, watches and clocks, computer components, instrumentation, precision instruments, metal molds, car parts, craft gifts and other industries.
Machine Technical Parameters
