Smart Tiny Tube Laser Cutting Machine - Especially Design for Small Diameter and Light Metal Tube Laser Cutting
Suit Metal Tubes' Outer Diameter From
Φ10mm to Φ120mm,
- Suit Various Shape Metal Tube High Speed Cutting.
- Pipes Length Reach 6 meters.
6-meter Automatic Tube Bundle Load System for Continuous Batch Cut.

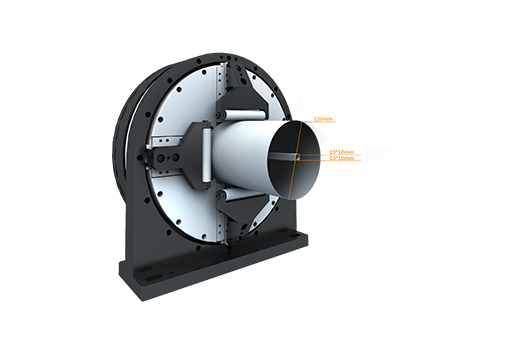

Φ10-Φ120mm OD Tube Main Chuck
Suitable Chuck Especially Design for Small Tube Laser Cutting Machine,
Round Metal Tube Diameter: Φ10mm-Φ120mm, (Optional Φ90mm, Φ160mm)

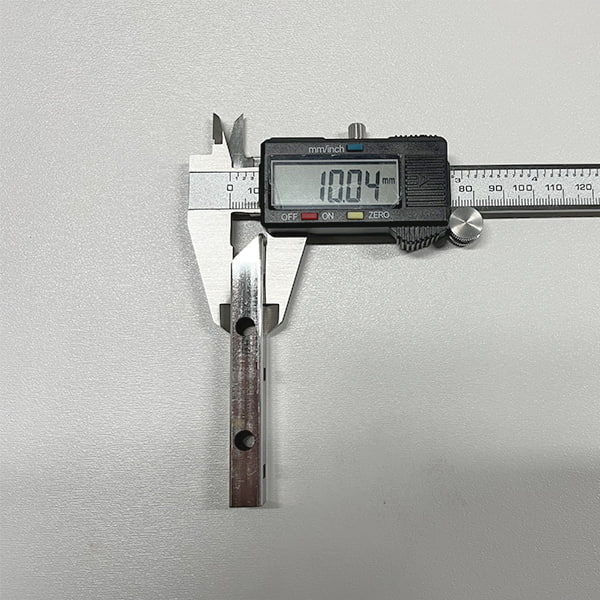

Square Tube Side length: 10*10mm-120*120mm.
High Efficiency Cutting
Double Ensure Automatic Correction for Small Tube Cutting
Golden Laser's Special Design to Ensure accuracy during Cut Small and Light Tube, Extra Automatic Calibration Device When Holding the Tube Before Laser Cutting.
Suitable Adjust Power to Correct the Tube and Ensure Steady Before Laser Cutting Processing.

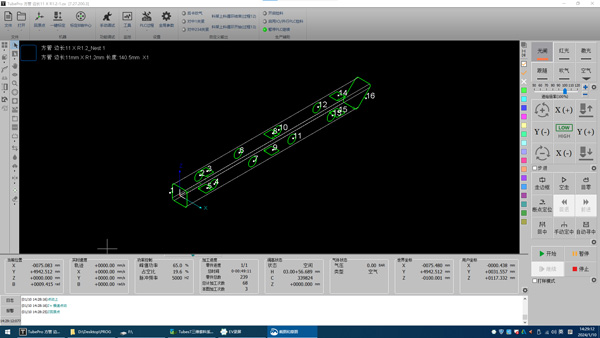

China CNC BUS Controller With High Compatibility
Advanced Algorithm in the Tube Laser Cutting Machine Controller
Visual Operation Interface Give your Good User Experiences During the Production.
Easy Operate and Double Your Production Efficiency Rate.
Rich Functional Applications
- One-button cutting,

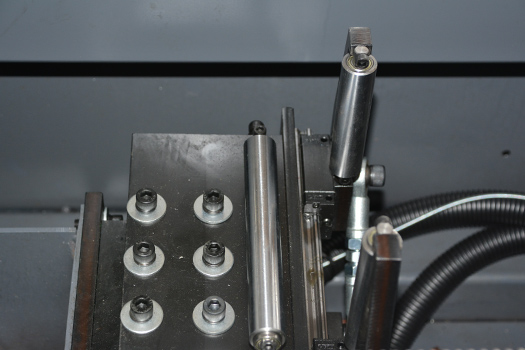

- Automatic centering,
- Pipe alignment,

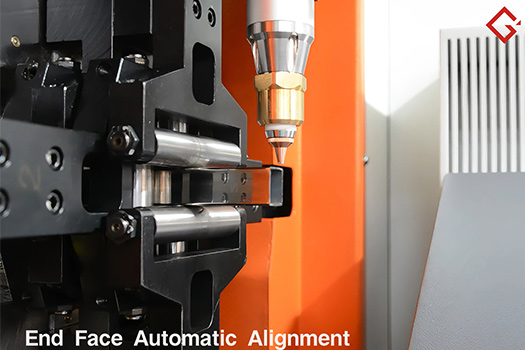

- Automatic end-face alignment,
- Processlibrary, etc.
The application features are rich, versatile, and easy to use.

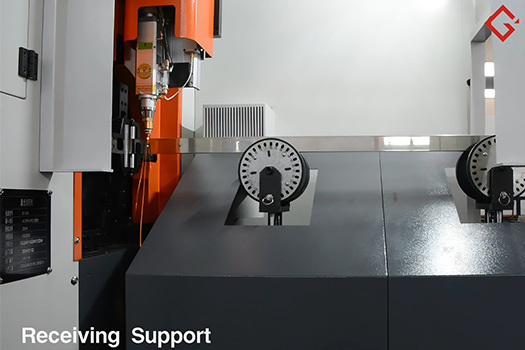

Movable Tube Receiving Support

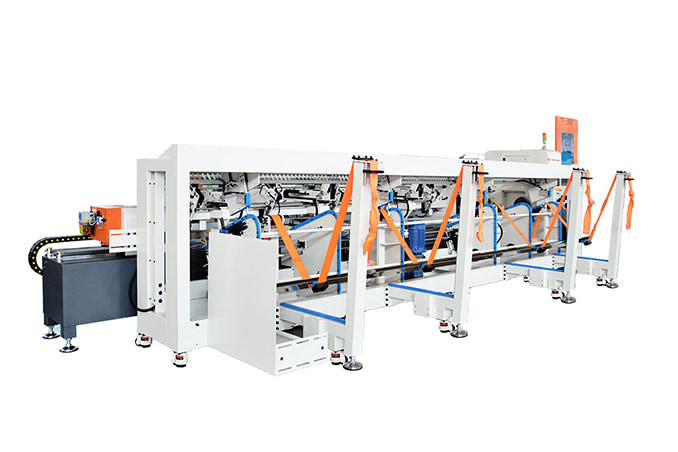

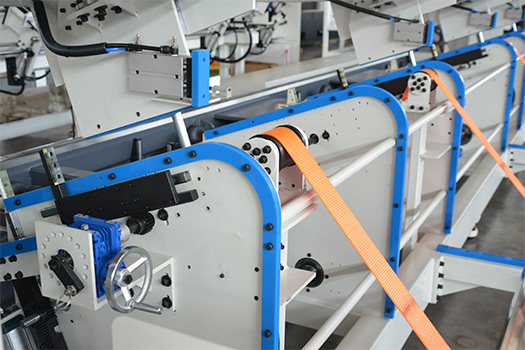

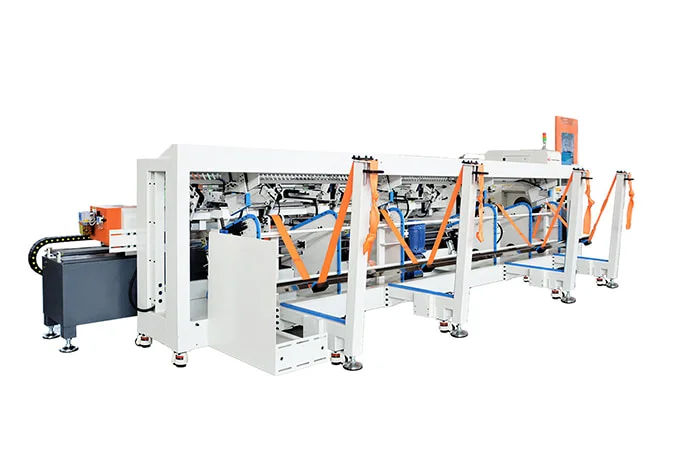

6 Meter Small Tube Automatic Bundle Loader

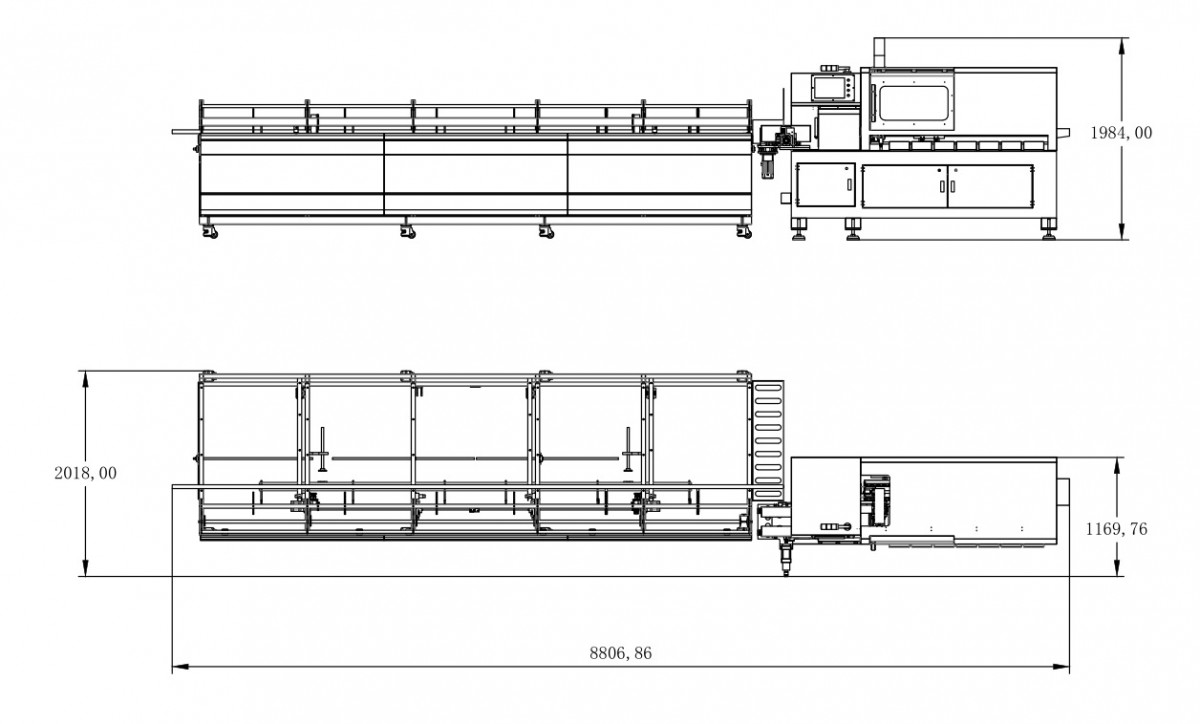

Tube Laser Cutting Machine Layout
Compact Design Ting Tube Laser Cutting Machine suit for more limited space workshop.
Only 3*9.7m For the Tube Laser Cutting Machine Running

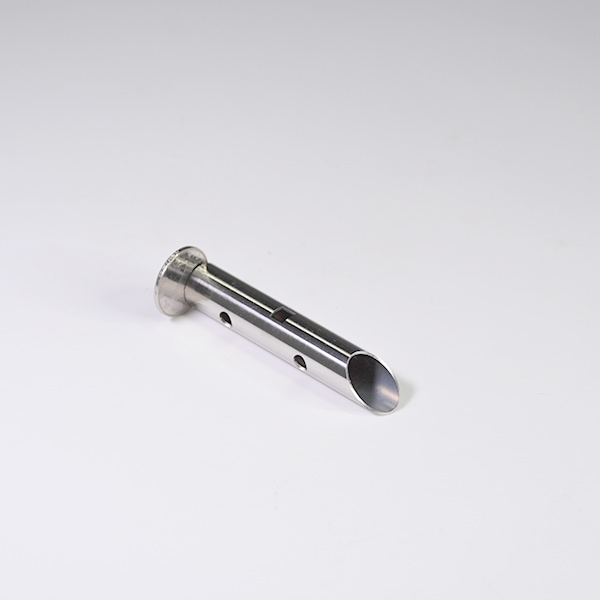

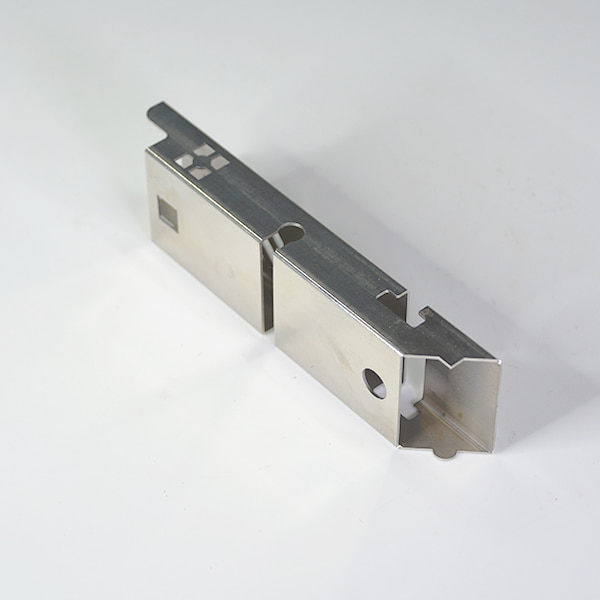

Tube Laser Cutting Machine - Cutting Samples for Stainless Steel Metal Tubes
S12 Tiny Tube Laser Cutting Machine Video
Customer Testimonials of S12
This tube laser cutting machine is quite suited for my metal furniture manufacturer's production. Right cover our tubes range, help us save lots of cost than a standard tube laser cutter
Great Cutting Speed when cutting small tubes, high precise and good cutting result. Thanks.
The Price of a laser tube cutting machine also depends on the laser power and type of laser source, welcome to contact our sales team for the detailed solution.
Normally it needs about 45 working days for production.
We afford door-to-door installation and training.
But the cause of COIVD -19, we also afford Zoom, Teamview, and other online guides for installation and training.
For More Local installation and training, pls contact us for more detail.
Yes, you can tell us your demand time, then we can count according to our production line schedule.
Ready to Get Price?
Material & Industry Application
Applicable Materials Stainless steel, carbon steel, aluminum, brass, copper, alloy steel and galvanized steel etc.
Applicable Types Of Tubes and Industry This model is suit for different shape small diameter tube truncating and holes drilling, in high precise and high speed.
Machine Technical Parameters
| Model Name | S12 / S09 /S16 |
| Maximum processing length | 6000mm |
| Tube diameter range | Round tube φ10-φ120mm （0.39″- 4.72″）, square tube □10×10- □120×120mm （0.39″- 4.72″) |
| Single tube bearing weight | 50kgs |
| Laser source | IPG/ Raycus / Max fiber laser generator |
| Laser power | 1500W 2000W 3000W |
| Cutting System | FSCUT (China CNC Controller) |
| Repeatability | ±0.03mm (±0.001″) |
| Positioning Accuracy | ±0.05mm |

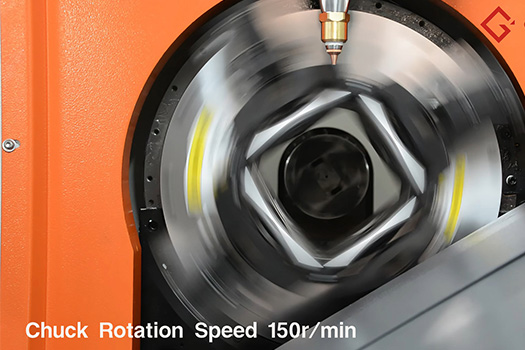

| Rotational speed | 150r/min |
| Max Acceleration | 1.5g |
| Auto feeder maximum size and weight | 1T |
| Equipment dimensions (length × width) | 9633mm* 2993mm* 2100mm |
| Equipment weight | 2.5 T |
