| Model number | V9/V9MAX |
| Tube length | 6000mm |
| Tube diameter | 10-90mm |
| Laser Head | 2D / 3D |
| Laser source | Imported fiber laser resonator IPG / China Laser Source Raycus or Max |
| Servo Motor | Yaskawa Bus Motor |
| Laser source power | 1500W 3000w 4000w 6000w optional |
| Position accuracy | ±0.05mm |
| Repeat position accuracy | ±0.03mm |
| Rotating speed | 150r/min |
| Acceleration | 1.5G |
| Max Weight for Single Tube | 80KG |
| Cutting speed | depend on material, laser source power |
| Electric power supply | AC380V 50/60Hz |
| Auto tube Feeder | including the auto tube feeder |
| Floor Space | 10100mm*2200*2000 |
/

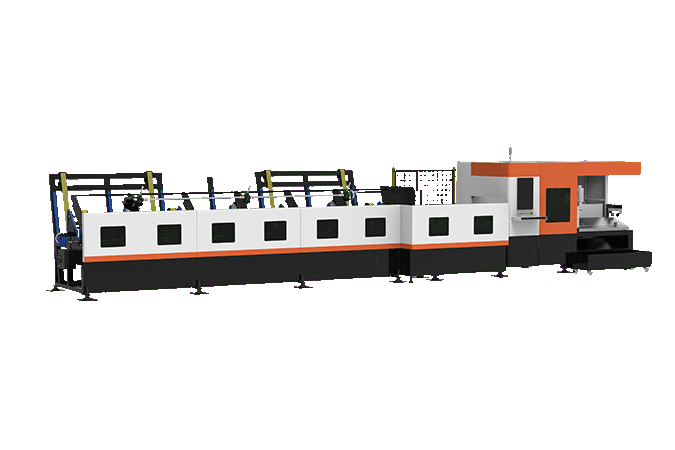

Varitable Small Tube Laser Cutting Machine
-
Improve the whole cutting efficiency.
The more efficient fully automatic loading and receiving system designed for small tube cutting
greatly shortens the processing cycle and improves efficiency and automation level.
Mainly Features

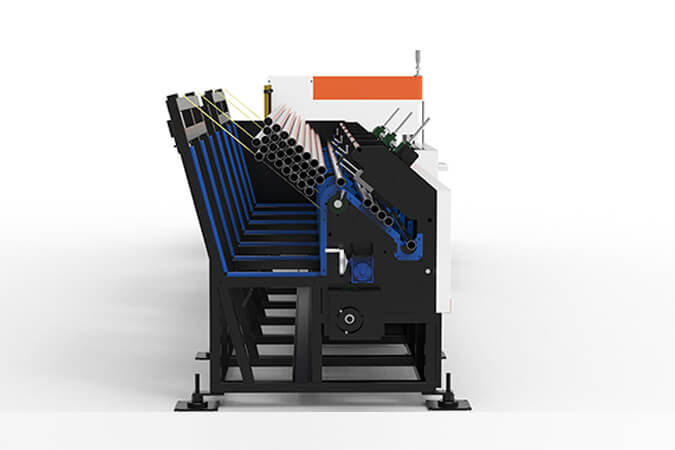

Bundle Tube Loading System
Round, Square, and Rectangle Tube bundle loading available
Automatic separated tubes
Extremely Integrated Design Concept
This equipment cleverly integrates components such as fully automatic loading machine, circuit control system, fiber laser and oil and gas system in a compact and precise space layout, achieving highly intensive and extremely miniaturized overall structure
Maximum Acceleration：1.5G
Maximum Rotational Speed：150r/minute.

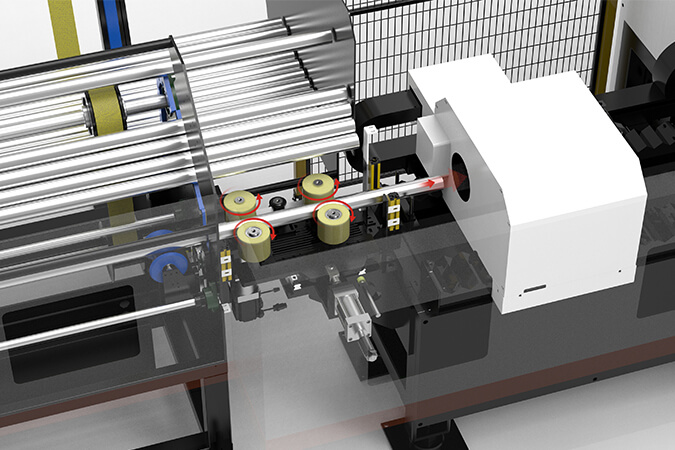

Pulling Loading is Faster
Compared with the traditional loading method, the second tube is already in place, and it only needs one step to enter the cutting area, without waiting for the rear card to return to the origin and then push the material into the cutting area after clamping.

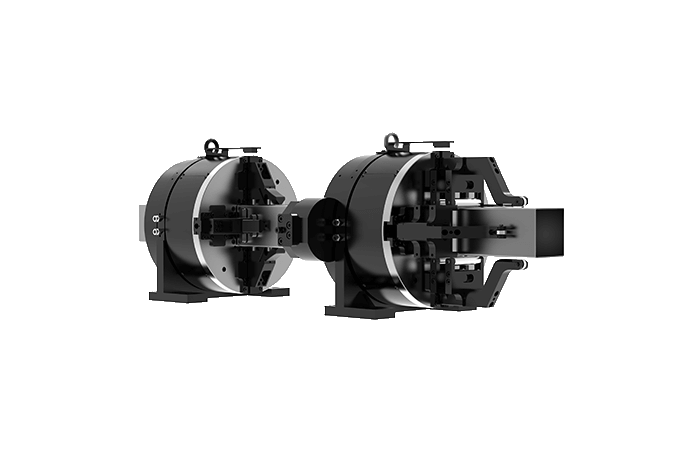

Full Stroke Front Chuck
√ The square hole chuck maximum clamping 90mm×90mm square tubes.
√ Full-stroke automatic clamping, the tube can be quickly clamped with one click

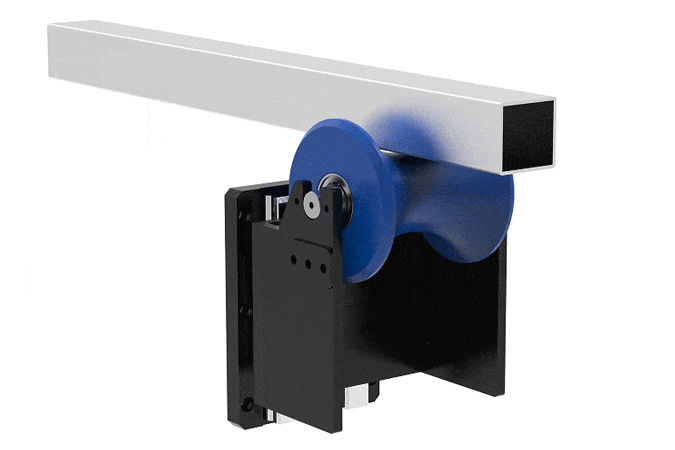

Variable Diameter Wheel Support
Integrated with multi-specification pipe support position markings, only simple manual operation is required to instantly adjust the pipe support height, which is both quick and labor-saving

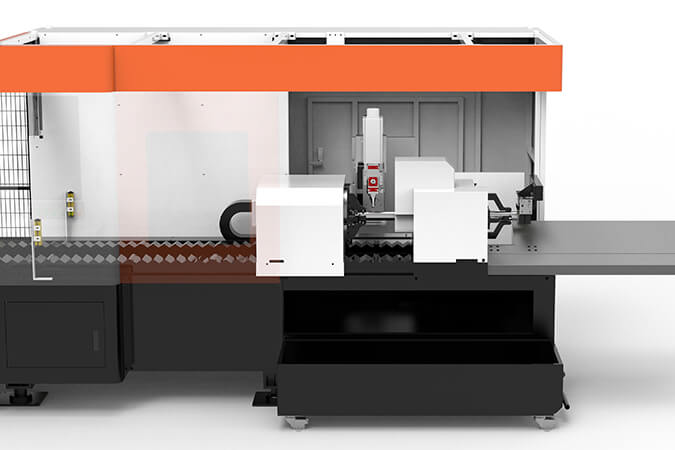

Reduce tailings
The front chuck innovatively incorporates automatic avoidance cutting technology to maximize cutting efficiency and material utilization.
Before cutting the last circle, the front chuck moves to the front intelligently, allowing the cutting head to flexibly shuttle between the front and rear chucks and close to the clamping area of the rear chuck for finishing cutting. This ingenious design greatly reduces the waste of tailings when cutting pipes with traditional double chucks to a minimum of 100mm, achieving the ultimate optimization of material use while ensuring the cutting accuracy of the last workpiece.
Free Drawing Function Menu-based Modeling
Easily model 3D tube cuts using the nesting menu, generating complex V-shaped and D-shaped grooves with one click. This integration eliminates software constraints, enhancing design efficiency

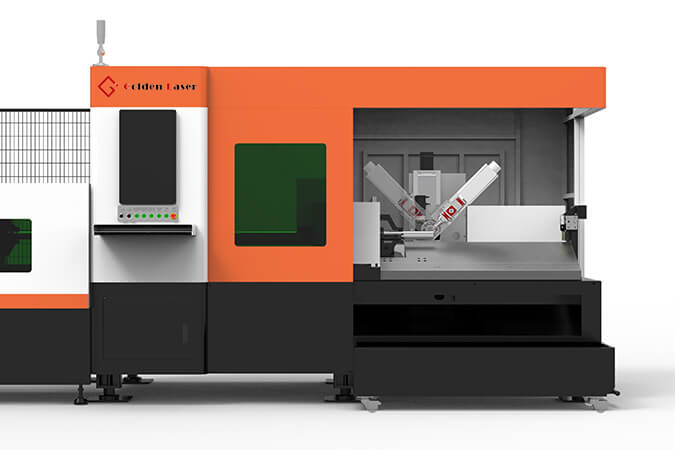

3D Laser Cutting Head -Pipe beveling diversity
The V9MAX intelligent cutting control system, paired with a multi-axis motion machine tool, enables complex groove cutting on various tubes, including round and square shapes.
It enhances applications by allowing various cutting styles like bevels, holes, and V-shaped grooves.

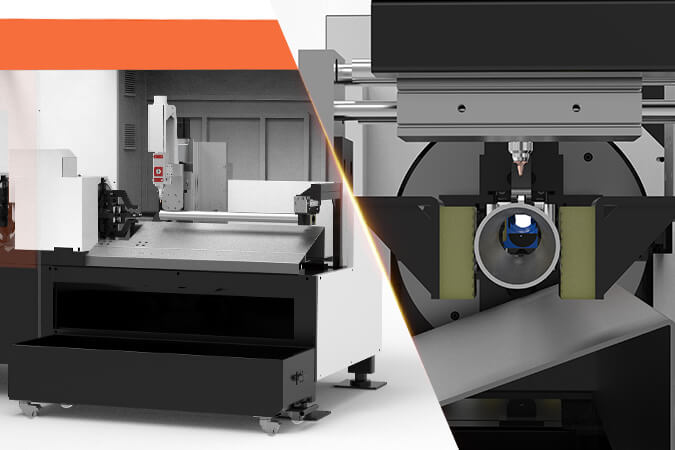

Innovatively Finished Tube Material Receiving Design
intelligent automatic clamping and unloading system can automatically start the pneumatic clamping mechanism to clamp the tail of the workpiece after the chuck avoids cutting, and the front and rear chucks retreat to free the workpiece from the restraint. Then the clamping mechanism is released, and the workpiece falls freely into the receiving frame, realizing barrier-free unloading, ensuring the automation and continuity of the entire process of pipe processing, improving efficiency and reducing costs
