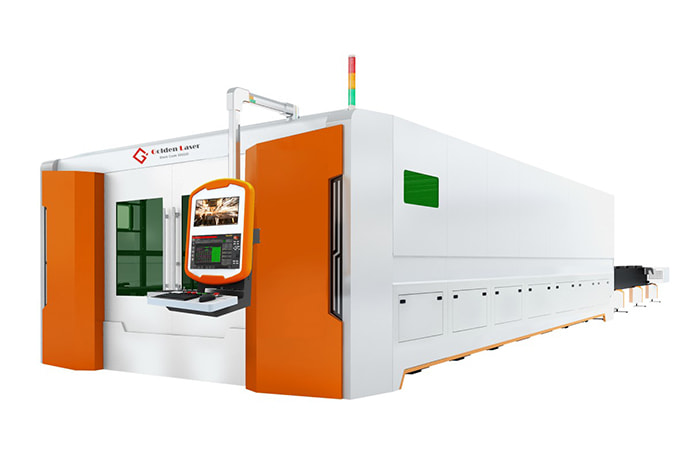

4000w 6000w 8000w Okun lesa dì Ige Machine

Ẹrọ gige laser agbegbe nla, pẹlu agbegbe gige 2500mm * 6000mm ati 2500mm * 8000mm fun yiyan.

6000w okun lesa ojuomi le ge max 25mm erogba, irin dì, 20mm alagbara, irin dì, 16mm aluminiomu, 14mm idẹ, 10mm Ejò ati 14mm galvanized, irin.

Agbara lesa: 4000w 6000w (aṣayan 8000w / 10000w)

CNC oludari: Beckhoff adarí

Ige agbegbe: 2.5m X 6m, 2.5m X 8m

Nọmba awoṣe: GF-2560JH / GF-2580JH

Firanṣẹ Inqury

Awọn alaye ẹrọ

Ohun elo & Ohun elo Industry

Awọn paramita Imọ ẹrọ

Awọn ọja ti o jọmọ

Ti tẹlẹ: 3000W Alagbara Erogba Irin dì Okun lesa Ige Machine

Itele: Agbara giga Gbogbo Ideri Fiber Laser Ige Machine Pẹlu BECKHOOF Adarí

Pade ati Exchange Table Okun lesa Ige Machine

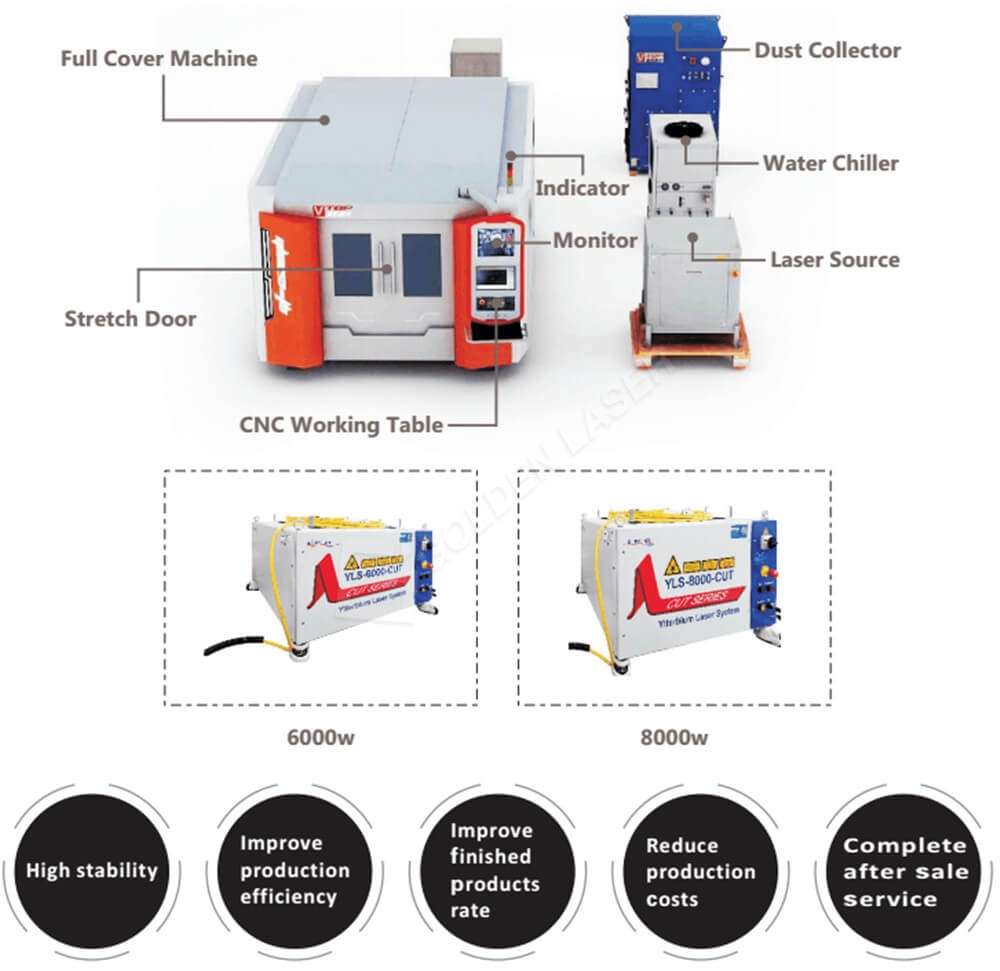

Awọn ẹya:GF-JH jara 6000W, 8000Wlesa ojuomini ipese pẹluIPG / nLIGHT lesamonomono bi daradara bi awọn ọna ṣiṣe awakọ miiran ti o munadoko, gẹgẹbi agbeko jia pipe to gaju, iṣinipopada itọnisọna laini giga, ati bẹbẹ lọ, ati pejọ nipasẹ oludari BECKHOFF CNC ti ilọsiwaju, O jẹ ọja hi-tech ti n ṣepọ gige laser, ẹrọ pipe, imọ-ẹrọ CNC , bbl Ni akọkọ ti a lo lati ge ati kọwe awọn iwe irin erogba, irin alagbara, irin alagbara, awọn ohun elo aluminiomu, awọn ohun elo apapo, bbl, pẹlu awọn ẹya ara ẹrọ ti iyara giga, pipe to gaju, ṣiṣe giga, ipin iṣẹ ṣiṣe idiyele giga, ati ni pataki fun titobi nla. Iwọn gige gige irin, pẹlu agbegbe gige 2500mm * 6000mm ati 2500mm * 8000mm, 6000w laser cutter le ge max 25mm carbon steel dì, ati 12mm irin alagbara irin dì.

Machine mojuto Parts alaye

Laifọwọyi akero Table

Awọn tabili iṣipopada iṣọpọ mu iṣẹ ṣiṣe pọ si ati gbe awọn akoko fifun ohun elo silẹ. Eto iyipada tabili ọkọ akero ngbanilaaye ikojọpọ covenient ti awọn iwe tuntun lẹhin ṣiṣi silẹ ti awọn ẹya ti o pari lakoko ti ẹrọ n ge dì miiran inu agbegbe iṣẹ.

Awọn tabili ọkọ akero ni kikun ina ati itọju ọfẹ, Awọn ayipada tabili wa ni iyara, dan ati agbara-daradara.

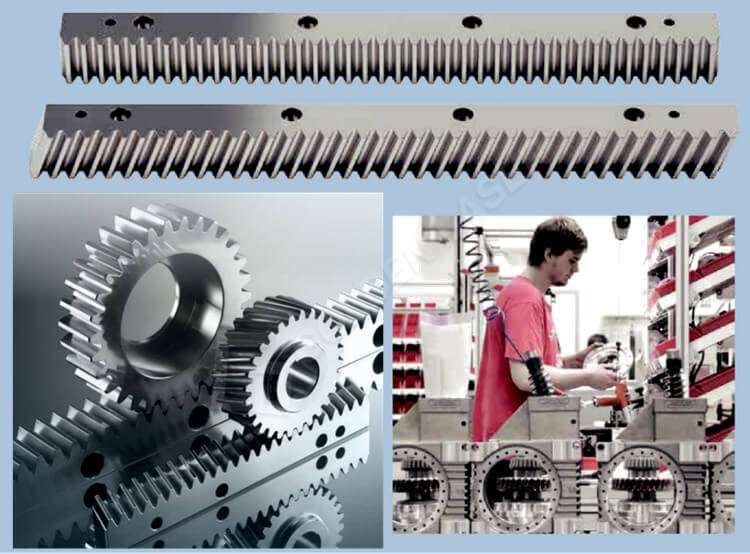

Agbeko ati Pinion išipopada System

Golden lesa lo ọkan ninu awọn agbeko ipari giga ti Atlanta, HPR(High Precision Rack) jẹ kilasi didara kilasi 7 ati ọkan ninu awọn ga julọ ti o wa ni ọja ode oni. Nipa lilo kilasi 7 agbeko o ṣe idaniloju ipo deede ati gba laaye fun isare giga ati awọn iyara ipo.

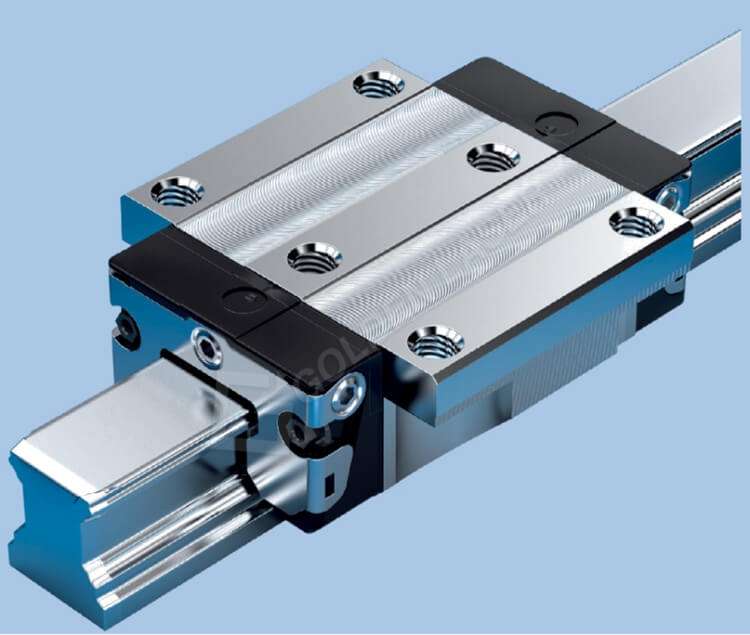

Liner Itọsọna išipopada System

Geometri agbegbe titẹsi tuntun fun awọn bulọọki olusare bọọlu konge giga.

Awọn bulọọki olusare bọọlu ni pipe ni agbegbe titẹsi imotuntun. Awọn opin ti awọn irin apa ko ni atilẹyin nipasẹ awọn rogodo Isare Àkọsílẹ ara ati ki o le nitorina deflect elastically. Agbegbe titẹsi yii ṣatunṣe ni ẹyọkan si ẹru iṣẹ ṣiṣe gangan ti bulọọki olusare bọọlu.

Awọn boolu naa wọ inu agbegbe ti o ni ẹru pupọ laisiyonu, ie laisi eyikeyi gbigbe pulsation.

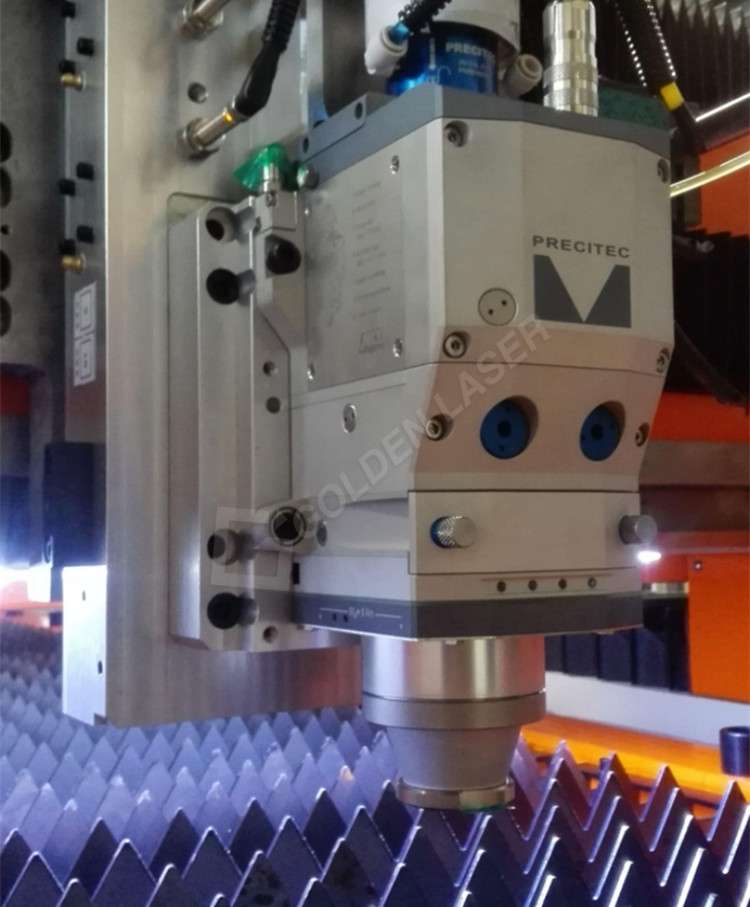

Germany Precitec lesa gige Head

Olori gige laser okun to gaju, eyiti o le ge awọn ohun elo irin oriṣiriṣi ni ọpọlọpọ sisanra.

Lakoko gige ina ina lesa, awọn iyapa ni ijinna (Zn) laarin nozzle (elekiturodu nozzle) ati dada ohun elo, eyiti o ṣẹlẹ nipasẹ fun apẹẹrẹ workpiece tabi awọn ifarada ipo, le ni odi ni ipa lori abajade gige.

Eto sensọ Lasermatic® ngbanilaaye iṣakoso ijinna deede ni iyara gige giga. Ijinna si dada workpiece ni a rii nipasẹ awọn sensọ ijinna capacitive ni ori lesa. Ifihan agbara sensọ ti wa ni gbigbe si ati itupalẹ nipasẹ ẹrọ naa.

Germany precitec okun lesa ori procutter

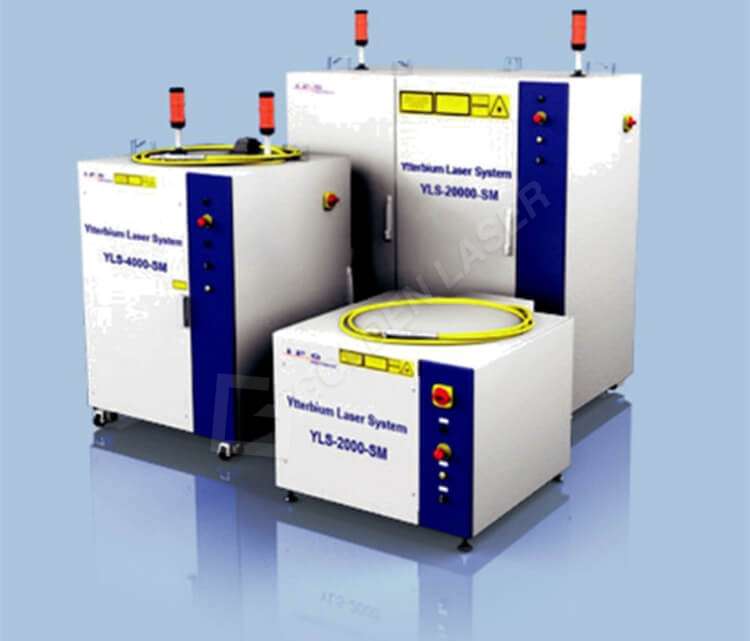

IPG Okun lesa monomono

700W to 8KW O wu Power Optical.

Diẹ ẹ sii ju 25% Iṣe-Plug Odi.

Itọju Ọfẹ Isẹ.

Ifoju Diode Igbesi aye> 100,000 Hrs.

Singe Ipo Okun Ifijiṣẹ.

4000w 6000w Fiber lesa Ige Machine Ige paramita

4000w Fiber Laser Ige Machine (agbara sisanra gige)

Ohun elo	Ige Idiwọn	Mimọ Ge
Erogba irin	25mm	20mm
Irin ti ko njepata	12mm	10mm
Aluminiomu	12mm	10mm
Idẹ	12mm	10mm
Ejò	6mm	5mm
Galvanized, irin	10mm	8mm

6000w Fiber Laser Ige Machine (agbara sisanra gige)

Ohun elo	Ige Idiwọn	Mimọ Ge
Erogba irin	25mm	22mm
Irin ti ko njepata	20mm	16mm
Aluminiomu	16mm	12mm
Idẹ	14mm	12mm
Ejò	10mm	8mm
Galvanized, irin	14mm	12mm

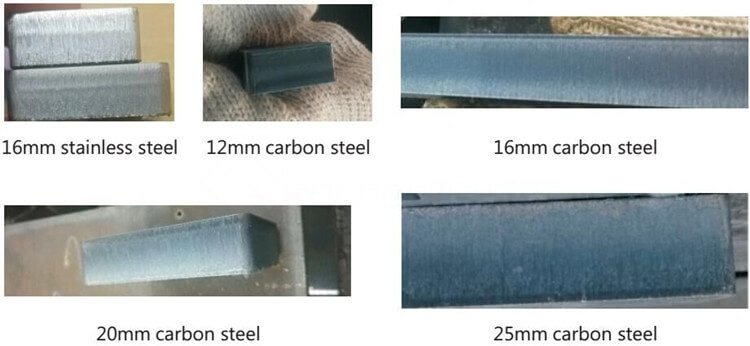

6000W Okun lesa Ige Nipọn Irin Dì

6000w GF-2560JH Fiber Laser Ige Machine Ni Korea Onibara Aaye

6000w GF-2580JH Fiber lesa Ige Machine Ni Korea Factory

Ti tẹlẹ: 3000W Alagbara Erogba Irin dì Okun lesa Ige Machine

Itele: Agbara giga Gbogbo Ideri Fiber Laser Ige Machine Pẹlu BECKHOOF Adarí

Ohun elo & Ohun elo Industry

Awọn ohun elo ti o wulo

Irin alagbara, erogba, irin, aluminiomu, idẹ, Ejò, galvanized, irin, alloy, irin ati be be lo.

Ohun elo aaye

Gbigbe ọkọ oju-irin, ọkọ ayọkẹlẹ, ẹrọ imọ-ẹrọ, iṣẹ-ogbin ati ẹrọ igbo, iṣelọpọ itanna, iṣelọpọ elevator, awọn ohun elo itanna ile, ẹrọ ọkà, ẹrọ asọ, sisẹ irinṣẹ, ẹrọ epo, ẹrọ ounjẹ, awọn ohun elo idana, ipolowo ọṣọ, awọn iṣẹ iṣelọpọ laser ati awọn ẹrọ miiran awọn ile-iṣẹ iṣelọpọ ati bẹbẹ lọ.

Awọn paramita Imọ ẹrọ

4000w 6000w (8000w, 10000w iyan) Ẹrọ Ige Okun lesa

Imọ paramita

Awoṣe ẹrọ	GF2560JH	GF2580JH	Awọn akiyesi
Ilana ọna kika	2500mm * 6000mm	2500mm * 8000mm
Iyara gbigbe ti o pọju ipo XY	120m/min	120m/min
XY axis o pọju isare	1.5G	1.5G
išedede ipo	± 0.05mm / m	± 0.05mm / m
Atunṣe	± 0.03mm	± 0.03mm
X-apa ajo	2550mm	2550mm
Y-apa ajo	6050mm	8050mm
Z-apa ajo	300mm	300mm
Oil Circuit lubrication	√	√
Afẹfẹ isediwon eruku	√	√
Ẹfin ìwẹnumọ eto itọju			iyan
Window akiyesi wiwo	√	√
Ige software	CYPCUT/BECKHOFF	CYPCUT/BECKHOFF	iyan
Agbara lesa	4000w 6000w 8000w	4000w 6000w 8000w	iyan
Aami lesa	Imọlẹ / IPG / Raycus	Imọlẹ / IPG / Raycus	iyan
Ige ori	Afowoyi idojukọ / laifọwọyi idojukọ	Afowoyi idojukọ / laifọwọyi idojukọ	iyan
ọna itutu	Itutu omi	Itutu omi
Workbench paṣipaarọ	Ni afiwe paṣipaarọ / Gigun paṣipaarọ	Ni afiwe paṣipaarọ / Gigun paṣipaarọ	Ti pinnu da lori agbara laser
Workbench akoko paṣipaarọ	45s	60s
Workbench o pọju fifuye àdánù	2600kg	3500kg
Iwọn ẹrọ	17T	19T
Iwọn ẹrọ	16700mm * 4300mm * 2200mm	21000mm * 4300mm * 2200mm
Agbara ẹrọ	21.5KW	24KW	Ko ni lesa, chiller agbara
Awọn ibeere ipese agbara	AC380V 50/60Hz	AC380V 50/60Hz
