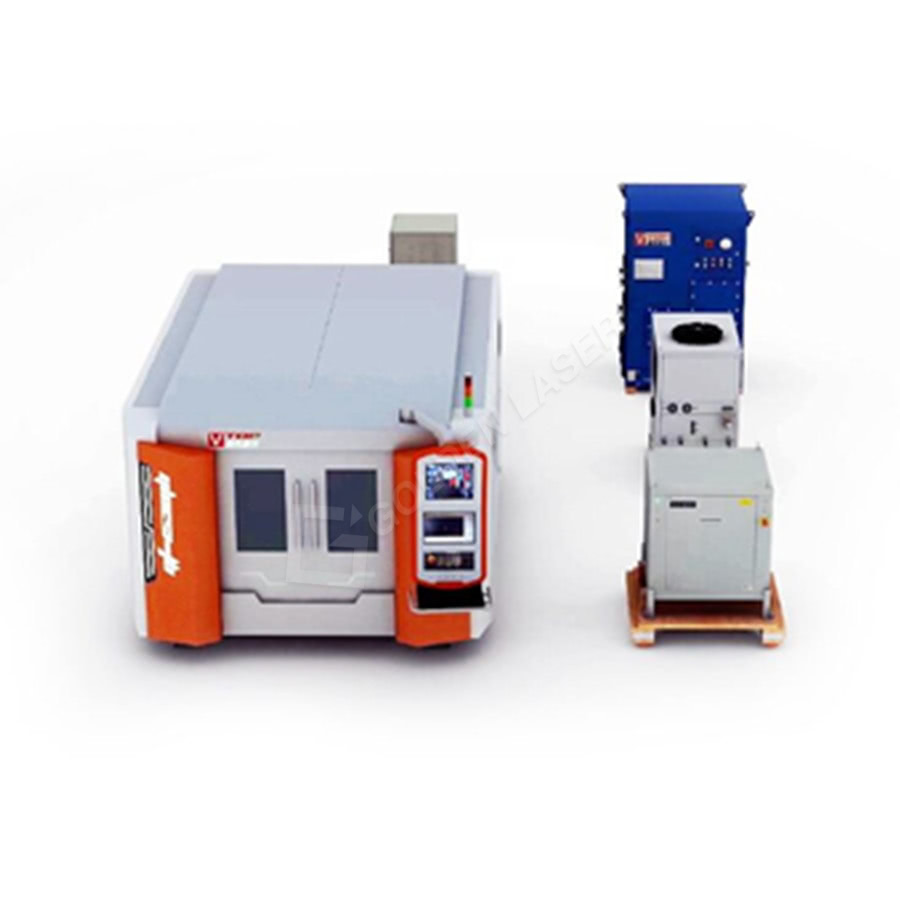

4000w 6000w (8000w, 10000w opsjoneel) Fiber Laser Sheet Cutting Machine
Technyske parameters
Equipment model | GF2560JH | GF2580JH | Opmerkingen |
Ferwurkjen formaat | 2500mm * 6000mm | 2500mm * 8000mm | |
XY as maksimale beweging snelheid | 120 m/min | 120 m/min | |
XY as maksimale fersnelling | 1.5G | 1.5G | |
posisjonearring accuracy | ± 0,05 mm/m | ± 0,05 mm/m | |
Repeatabiliteit | ± 0,03 mm | ± 0,03 mm | |
X-as reis | 2550 mm | 2550 mm | |
Y-as reis | 6050 mm | 8050 mm | |
Z-as reis | 300 mm | 300 mm | |
Oalje circuit lubrication | √ | √ | |
Stofafzuiging fan | √ | √ | |
Smoke suvering behanneling systeem | Fakultatyf | ||
Visuele observaasje finster | √ | √ | |
Snijsoftware | CYPCUT/BECKHOFF | CYPCUT/BECKHOFF | Fakultatyf |
Laser macht | 4000w 6000w 8000w | 4000w 6000w 8000w | Fakultatyf |
Laser merk | Nlight / IPG / Raycus | Nlight / IPG / Raycus | Fakultatyf |
Snijkop | Hânlieding / Autofokus | Hânlieding / Autofokus | Fakultatyf |
cooling metoade | Wetterkoeling | Wetterkoeling | |
Workbench útwikseling | Parallel útwikseling / klimmen útwikseling | Parallel útwikseling / klimmen útwikseling | Bepaald basearre op laser macht |
Workbench útwikseling tiid | 45s | jierren '60 | |
Workbench maksimale lading gewicht | 2600 kg | 3500 kg | |
Machine gewicht | 17T | 19T | |
Machine grutte | 16700mm * 4300mm * 2200mm | 21000mm * 4300mm * 2200mm | |
Masine macht | 21,5 kW | 24KW | Omfettet gjin laser, chiller macht |
Power supply easken | AC380V 50/60Hz | AC380V 50/60Hz |
