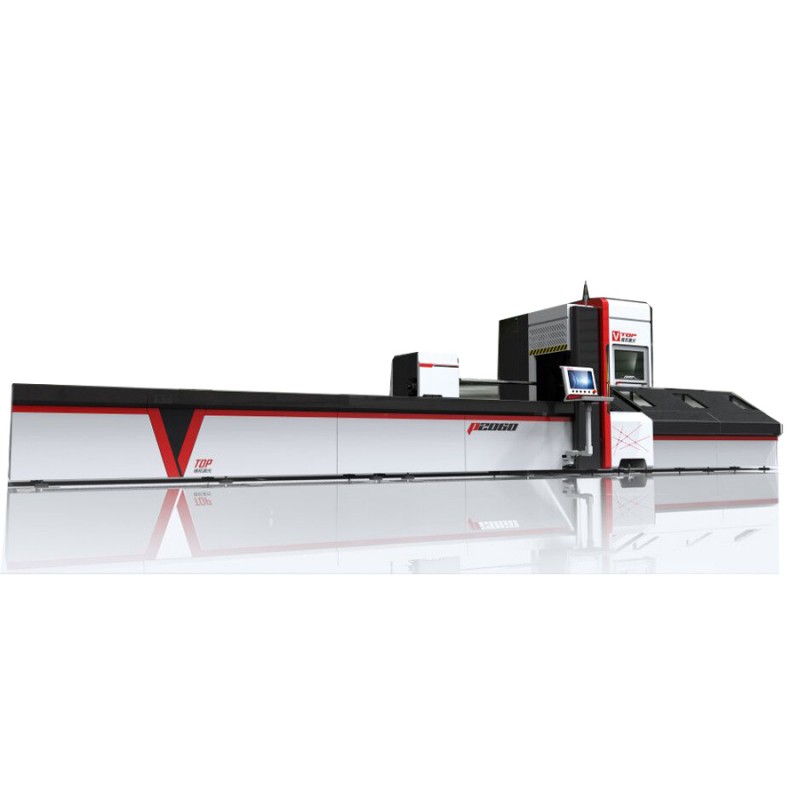

Umbhobho oMgangatho weLaser Cutting Machine P1660B

I-P1660B Umatshini wokusika weLaser oMgangatho we-P1660B yenye yohlobo lwethu lokungena kumatshini wokusika we-laser. Yamkela isuti ENTSHA ye-pnumatic chuck ye-metal tube dimater 20-160mm. 6 yeemitha ubude ityhubhu. I-chuck ye-stroke epheleleyo, akukho mfuneko yokulungelelanisa xa usikwa ityhubhu yentsimbi yobubanzi obuhlukeneyo. Ilungele ityhubhu yentsimbi eRound, ityhubhu yentsimbi yesikwere kunye netyhubhu yentsimbi exande.

……………………………………………………………………………………………………………………………………… ……………

Inombolo yomzekelo :P1660B

Umbhobho&Tube ubude:6000mm

Umbhobho&Idayimitha yeTubhu :20mm-160mm

Amandla eLaser:2000w

Umthombo weLaser:IPG / nLIGHT ifayibha laser generator

Umlawuli we-CNC :FSCUT Tubepro

Isoftware yeNesting:FSCUT

Ubukhulu bodonga lokusika:16mm CS, 8mm SS, 6mm aluminiyam, 6mm ubhedu, 4mm ubhedu kunye 6mm galvanized steel

Uhlobo lwetyhubhu esebenzayo :Ityhubhu ejikelezayo, ityhubhu yesikwere, ityhubhu yoxande, ityhubhu ye-oval, i-D-uhlobo lwe-T-shaped, i-beam, intsimbi yeshaneli, intsimbi ye-angle, njl.

Ishishini Elisebenzayo:Amalungu e-Auto, izixhobo zokuzilolonga, ifenitshala yentsimbi, ishishini lokulungisa iityhubhu njl.njl.

  • Inombolo yomzekelo : P1660B

Iinkcukacha zoomatshini

Isixhobo kunye neSicelo soShishino

IiParameters zobuGcisa bomatshini

X

P1660BUmgangathoUmbhobho Laser Cutting Machineyenye yeGolden Laserngenisa umatshini wokusika we-tube laser. YamkelaINTSHA ye-pnumatic chuckisuti ye-tube dimater 20-160mm. 6 yeemitha ubude ityhubhu.I-chuck epheleleyo, akukho mfuneko yokulungelelanisa xa usikwa ityhubhu yobubanzi obuhlukeneyo. Ilungele ityhubhu eRound, ityhubhu yesikwere kunye netyhubhu yeRectangle.

Isiphelo sokucubungula sithatha i-diameterukulungelelanisa inkxaso ye-roller ukuqinisekisa inkqubo ezinzileyo yexesha elide kunye nencinciimibhobho, kunye nokuphepha ukuchaneka kokusika okubangelwa yi-deformation yokugoba umbhobho.

I-TUBE PROCING EPHELELE

Umbhobho wenkunkuma uphela ithatha i-diameter yokuhlengahlengisa inkxaso ye-roller ukuphepha ukujingika kwe-inetia yombhobho wobunzima obugqithileyo phantsi kokujikeleza kwesantya esiphezulu ngexesha lokusetyenzwa kwe-workpieces ze-ultra-long, kwaye ngaloo ndlela kubangele ukungcangcazela kombhobho kunye nokusika ukuchaneka kwe-offset.

phelisa umxhasi



I-chuck epheleleyo: akukho mfuneko yokulungelelanisa iinzipho ze-chuck ukuba i-diameter yePipe ingaphakathi kwe-20-160mm, kwaye unokutshintsha uhlobo lwePipe ngokukhululekileyo, ngexesha elinye ubambe kwindawo efanelekileyo.

full stroke chuck



Inkqubo enemizobo

Akukho mfuneko yokuhlela ikhowudi ye-NC, imizobo ye-3D inokungeniswa ngaphandle kwaye iqhube inkqubo yokuhlela ngokuthe ngqo.

Ujongano olunye oludityaniswe nayo yonke imisebenzi

Zonke iinketho zomsebenzi wokusika umbhobho zidityaniswe kwi-desktop yesoftware, kwaye inokukhethwa ngeqhosha elinye usebenzisa ujongano olulodwa.

Ujongano lokusebenza olubonakalayo

Inkxaso yokubonisa i-synchronous ye-3D yemizobo kunye nenkqubo yokucubungula, ukusebenza kwexesha langempela lokucubungula
isoftware

Ngolwazi oluthe vetshe, pls shiya iinkcukacha zakho zoqhagamshelwano, kwaye siya kulungiselela injineli yokuthengisa yobuchwephesha ukukuxhasa.




  • Ngaphambili:
  • Okulandelayo:

  • Isixhobo kunye neSicelo soShishino


    I-P1660B yoMbhobho oMgangatho weLaser Cutting Machineisuti yezixhobo ezahlukeneyo zetsimbi, ezifana nentsimbi eMild, iStainless steel, iAluminiyam, iBrass, iCopper kunye nentsimbi yeGalvanized njalo njalo.

    Okuukusika laserUmatshini osetyenziswa ngokubanzi kwizixhobo zokufaneleka, ifenitshala yentsimbi, iproflie yetyhubhu ekhanyayo, imboni yokufaka umbhobho njalo njalo.

    Iindidi zemibhobho ezininzi zinokucutshungulwa njengezikwere, uxande, umjikelezo, umbhoxo, i-I-beam, i-angle, imilo kunye nezinye iipayipi.

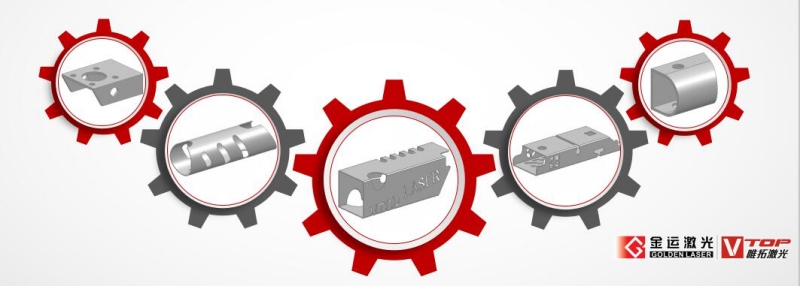

    uyilo lokusika umbhobho wemilo eyahlukileyo (1)

    IiParameters zobuGcisa bomatshini


    Ububanzi boMbhobho 20-160mm
    Ubude betyhubhu 6000mm
    Amandla eLaser 2000W
    Intloko yeLaser Raytools
    Umlawuli I-Tubepro

    Ngentla yiparamitha yereferensi yakho, ngolwazi oluthe vetshe, pls ndixelele ukuba yeyiphi ityhubhu ekufuneka uyinqumle.

    1. Loluphi uhlobo lwemilo yombhobho?

    2. Kuthiwani malunga nobubanzi kunye nobude betyhubhu?

    3.Kunjani malunga nobunzima?

    4. Ishishini lesicelo liya kusinceda ukuba sinikeze ingcebiso enxulumene ngakumbi.
